Disassemble the Assemblies Repair and Disassembly
6 - 38 046-001141-00 A5/A3™ Service Manual
6.2.5 Remove the Module Rack Assembly
1. Open the service door and refer to “Open the Service Door” on page 6-3.
1. Disassemble the rear panel and refer to “Remove the Rear Panel Assembly” on page 6-21.
2. Unplug the cable plug connecting the module rack assembly.

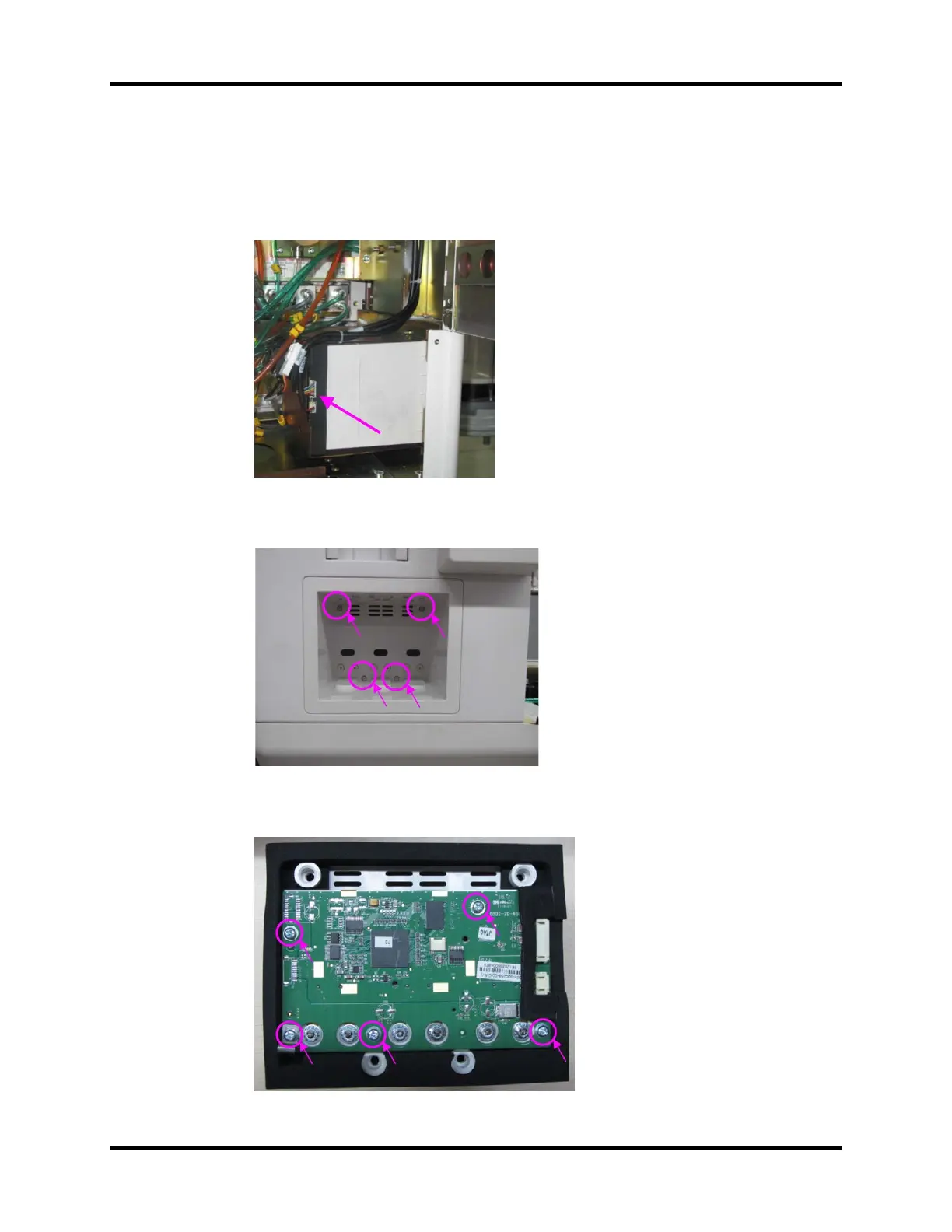

FIGURE 6-68
3. Unscrew the four screws to remove the module rack assembly.
FIGURE 6-69
4. Unscrew the five screws to remove the infrared communication board.
FIGURE 6-70
