Disassemble the Assemblies Repair and Disassembly
6 - 40 046-001141-00 A5/A3™ Service Manual
6.2.7 Remove the Panel of Pressure Gauges
1. Open the service door and refer to “Open the Service Door” on page 6-3.
2. Disassemble the rear panel and refer to “Remove the Rear Panel Assembly” on page 6-21.
3. Unplug the related tubes from the supply gas pressure gauges on the panel.
4. Remove the three copper pipes on the high-pressure gauges from cylinder bracket assembly
and refer to “Remove the Cylinder Bracket Assembly” on page 6-27..

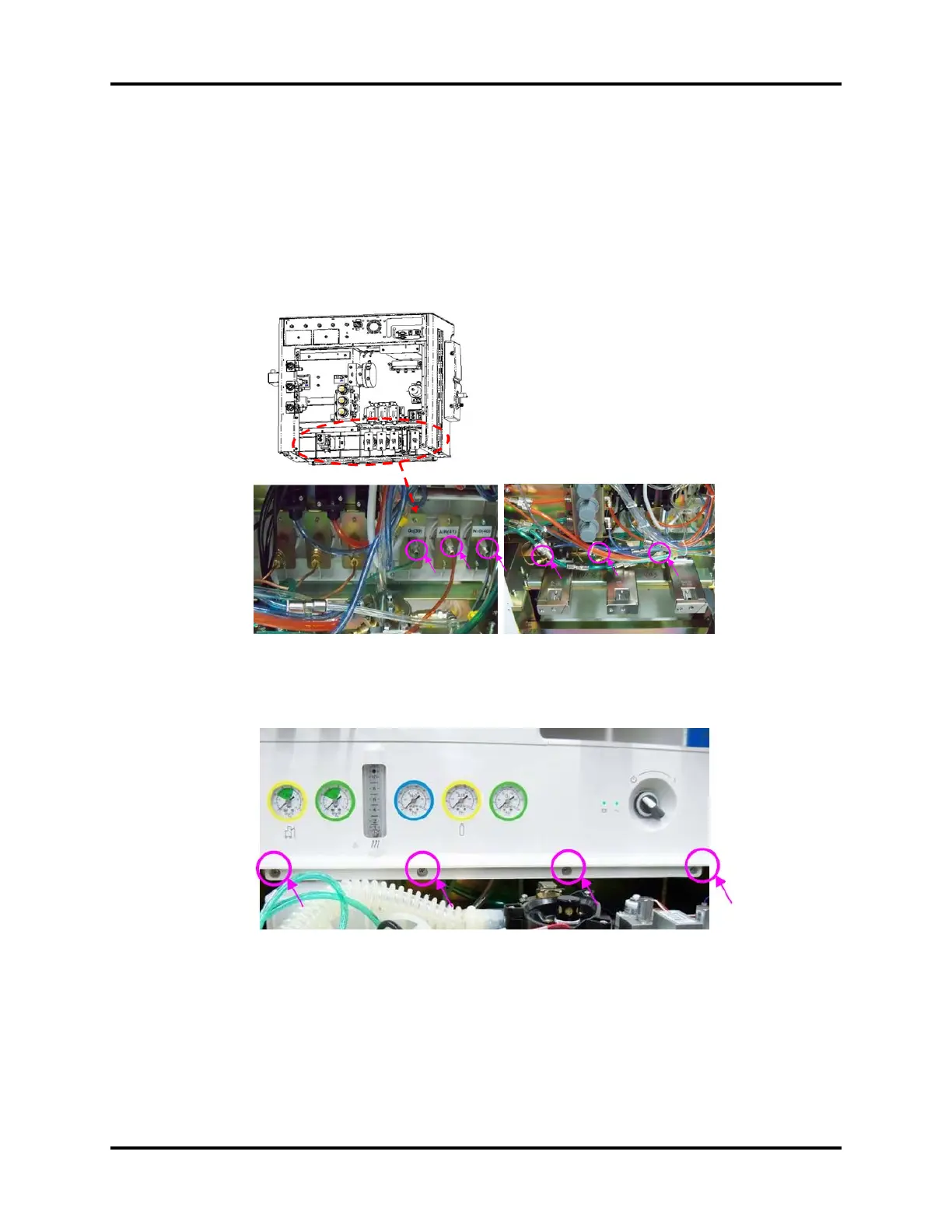

FIGURE 6-74
5. Remove the four screws on the gauge panel to remove the panel.
FIGURE 6-75
