A5/A3™ Service Manual 046-001141-00 6 - 47
Repair and Disassembly Disassemble the Breathing System
6.3 Disassemble the Breathing System
6.3.1 Remove the O2 Sensor and Cable

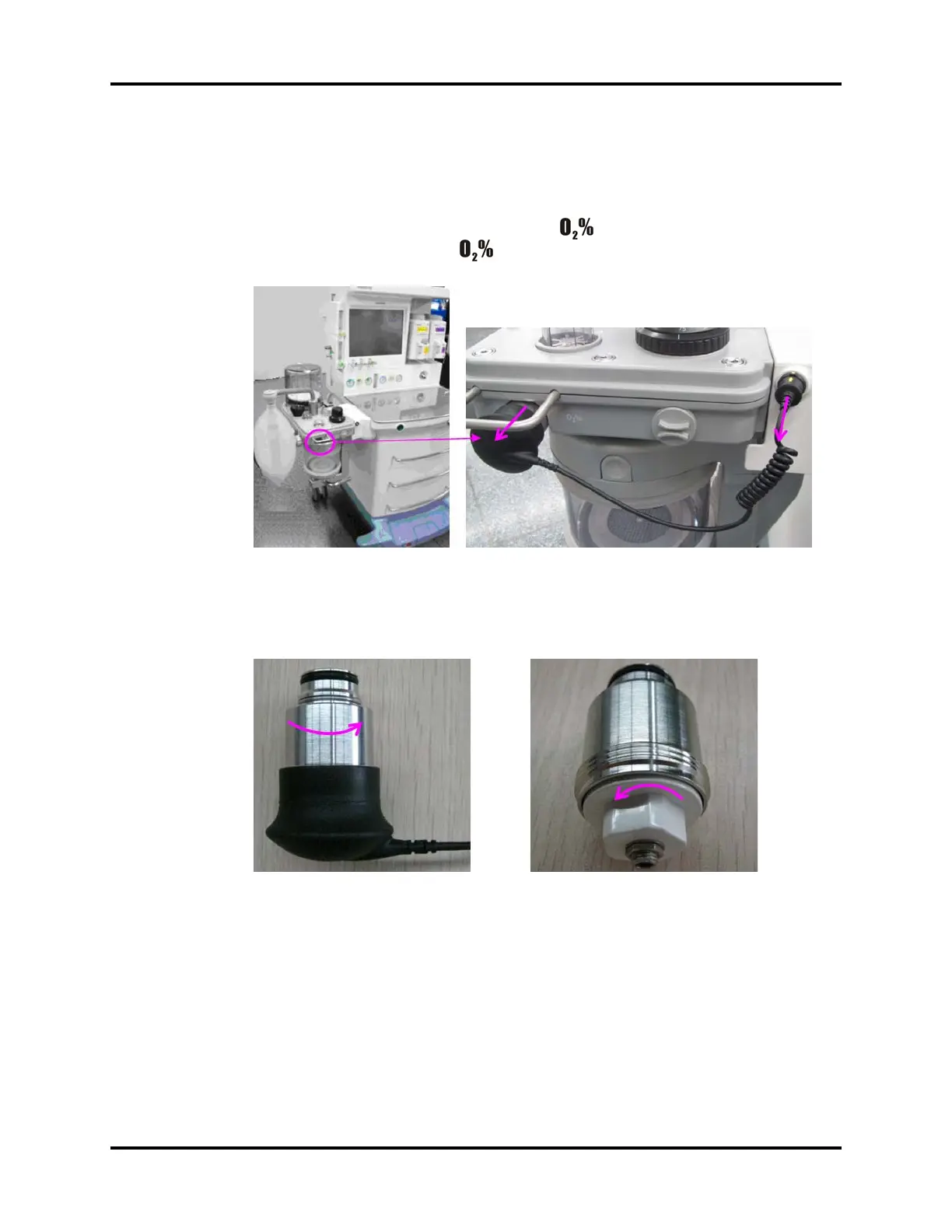

1. Remove one end of the O2 sensor cable from the connector on the anesthesia machine.
Unplug the O2 sensor from the port on the Breathing System by pulling straight out.
FIGURE 6-89
2. Turn the black plug counterclockwise to take it out of the housing.And then turn the O2 sensor
counterclockwise to take it out of the threaded cup.
FIGURE 6-90
