Disassemble the Breathing System
Repair and Disassembly
6 - 54
046-001141-00
A5/A3™ Service Manual

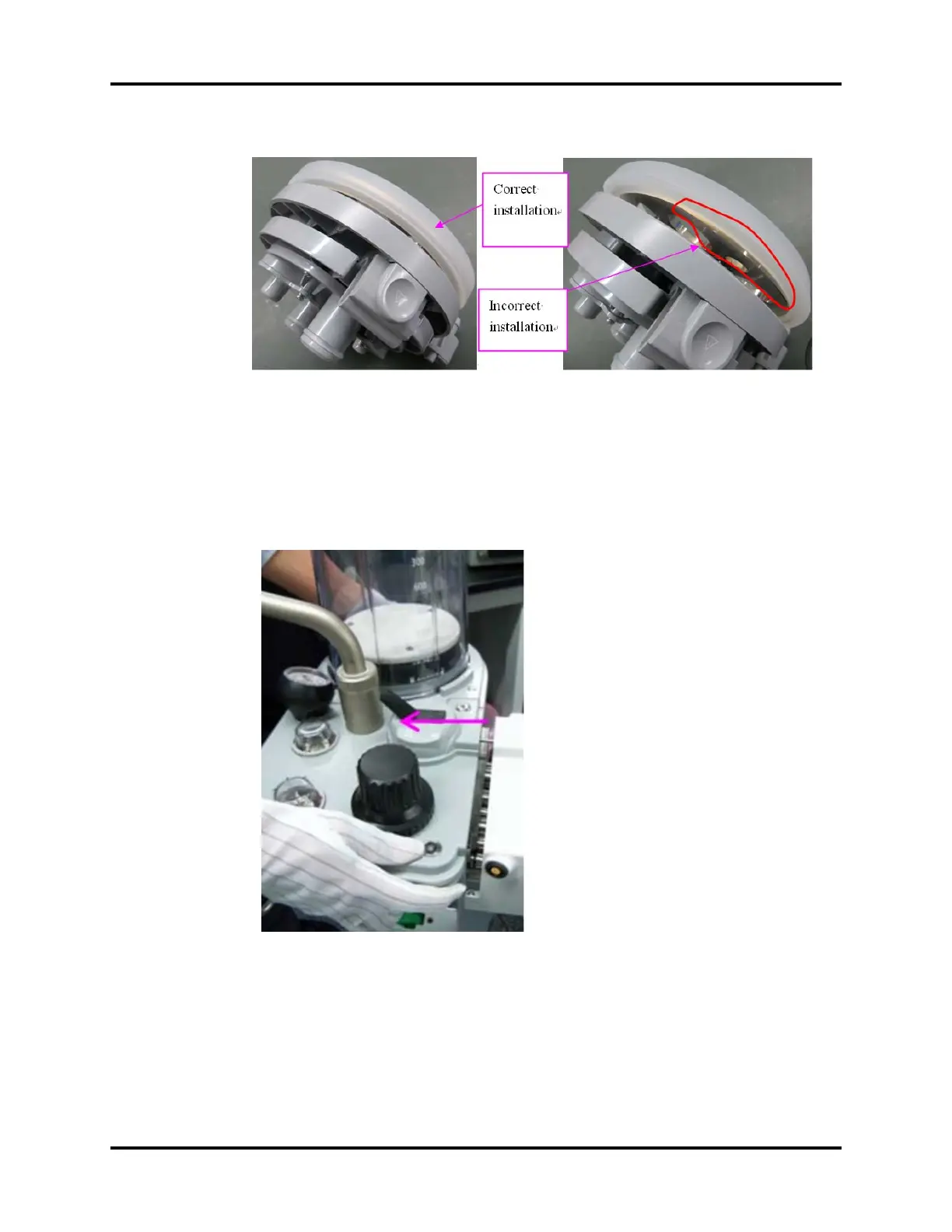

FIGURE 6-103
6.3.7
Remov
e the Patient Cir
cle Assembly
1.
Remove the C
O2 B
ypass assembly as per section 6.3.6.
2.
Pull the
patient circle assembly away fr
om the rotating block assembly
.
FIGURE 6-104
6.3.8
Remov
e the Be
llow
s Assembly
1.
T
urn the bellows dome cou
ntercloc
kwise and lift off to remov
e.
