A5/A3™ Service Manual 046-001141-00 6 - 53
Repair and Disassembly Disassemble the Breathing System

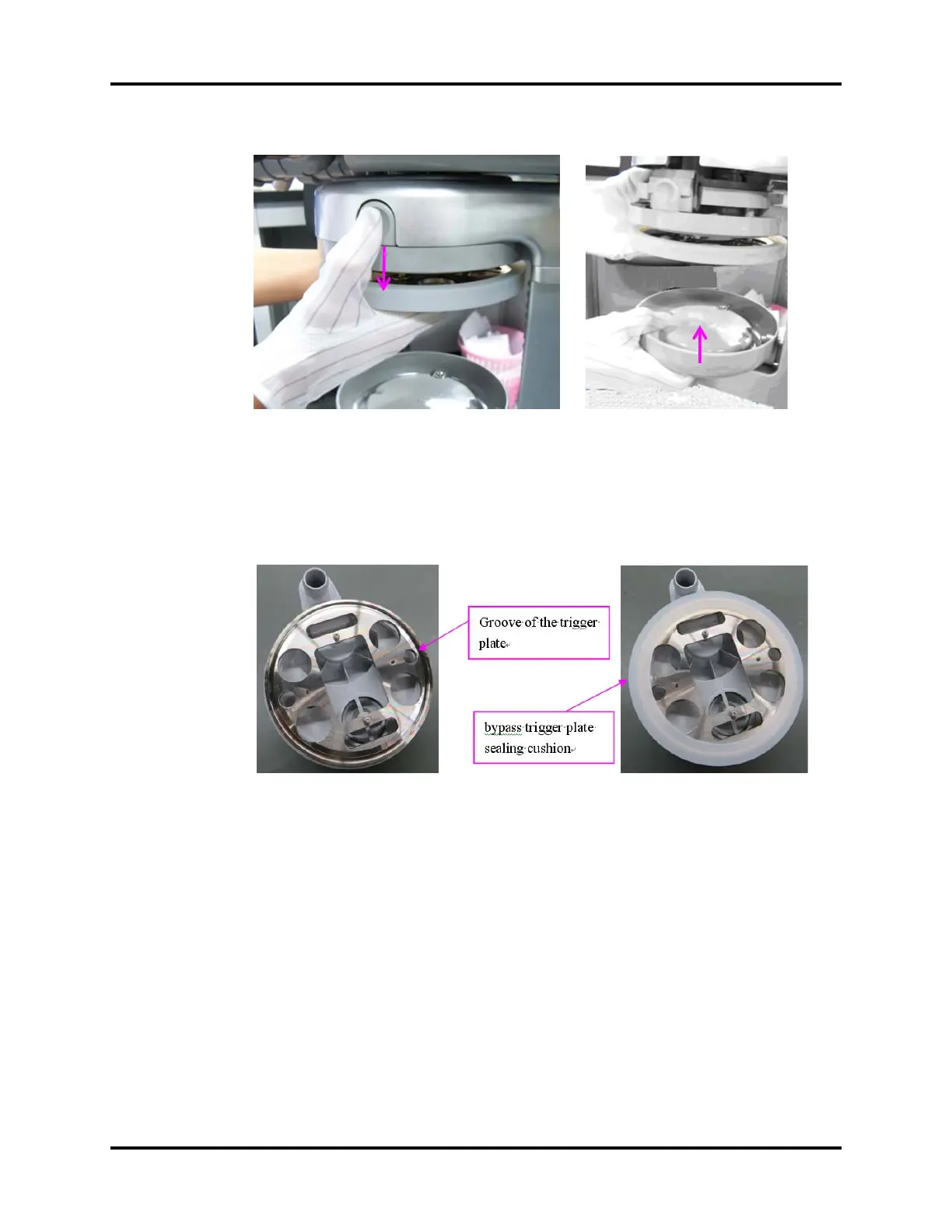

FIGURE 6-101
If it is necessary to replace or re-install the bypass trigger plate sealing cushion (049-000142-00), pay
attention to the matching between the interior convex rib of the bypass trigger plate sealing cushion
and the groove of the bypass trigger plate when assembling the bypass trigger plate sealing cushion
onto the bypass trigger plate, as shown below.
FIGURE 6-102
Make sure that the sealing cushion is correctly installed. The comparison between correct installation
and incorrect installation is shown below.
