System Calibration Calibration
4 - 18 046-001141-00 A5/A3™ Service Manual
FIGURE 4-15

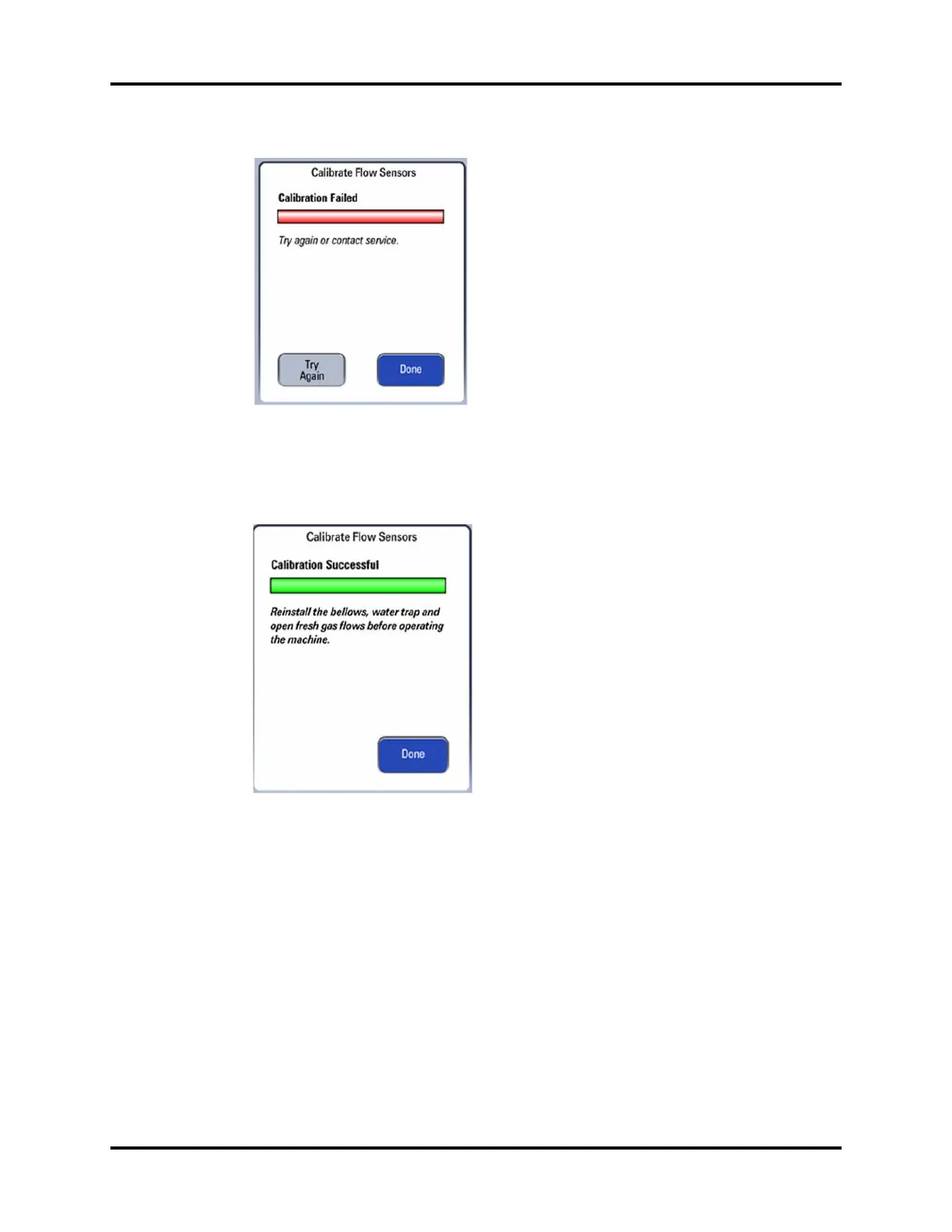

7. The screen shown below is displayed after a successful flow sensor calibration. Select Done to
exit the calibration screen.
FIGURE 4-16
NOTE: If measurement deviations are not corrected after multiple flow sensor
calibrations, the user is recommended to replace the flow sensor and
then perform calibration. If the problem persists, factory maintenance
is necessary.
4.3.3 Flow Calibration (Service)
NOTE: Flow Calibration (Service) is necessary in case of replacing the
ventilator control board, drive gas assembly or solenoid valve
assembly.
NOTE: When a great deviation is detected between the measured value of the
built-in flow sensor and that of the standard flow measurement device,
you need to perform Flow Calibration (Service).
