A5/A3™ Service Manual 046-001141-00 4 - 71
Calibration System Calibration

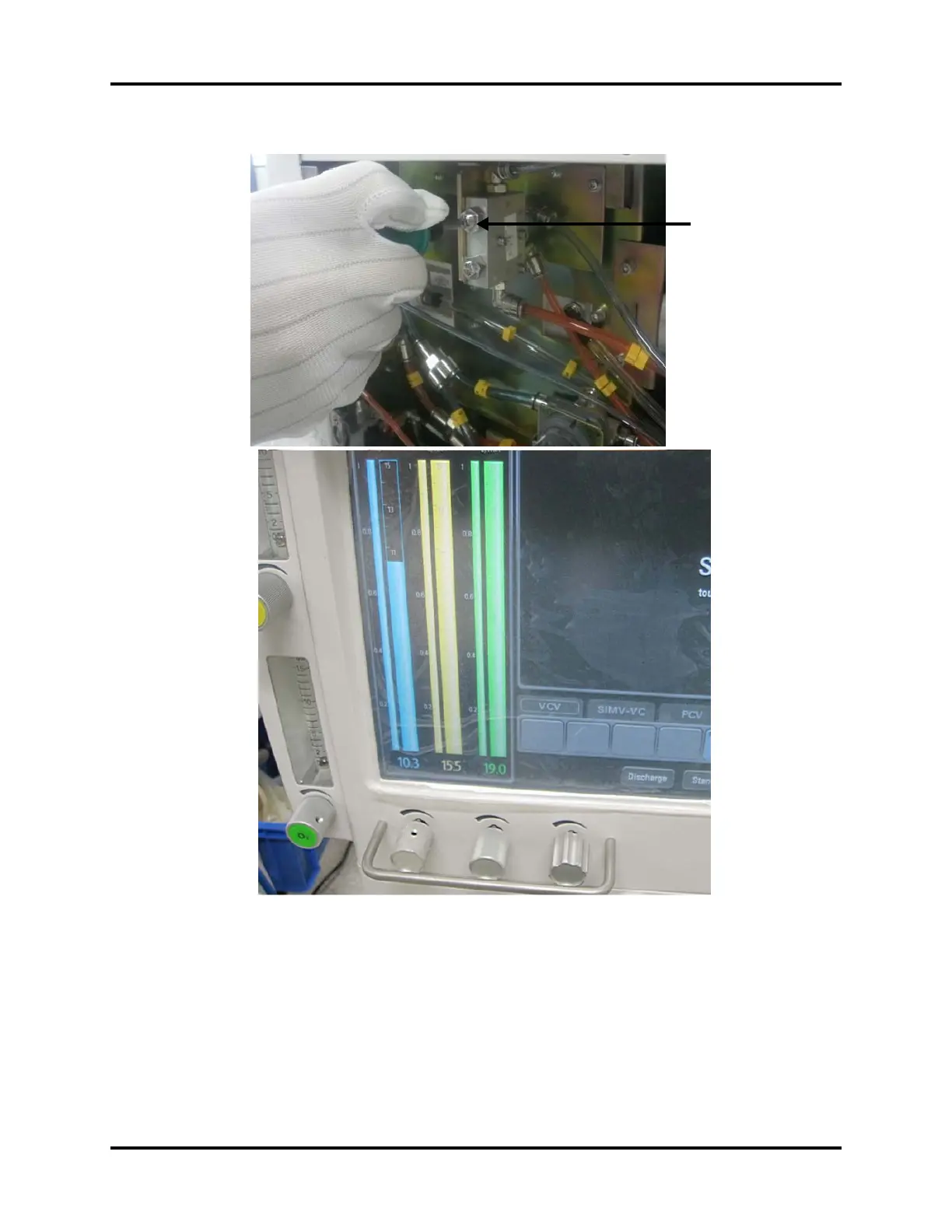

FIGURE 4-90
4.3.9 Cylinder Yoke Regulator Calibration
Follow these steps to perform cylinder yoke regulator calibration (the following takes N2O cylinder
yoke assembly as an example. The calibration steps of O2 and Air cylinder yoke regulators are same to
those of N2O).
For O2 and Air, the pressure in the cylinder must be at least 1000 psi. For N2O, the pressure in the
cylinder must be at least 500 psi.
