Mindray A3 Service Manual

System Calibration Calibration
4 - 12 046-001141-00 A5/A3™ Service Manual

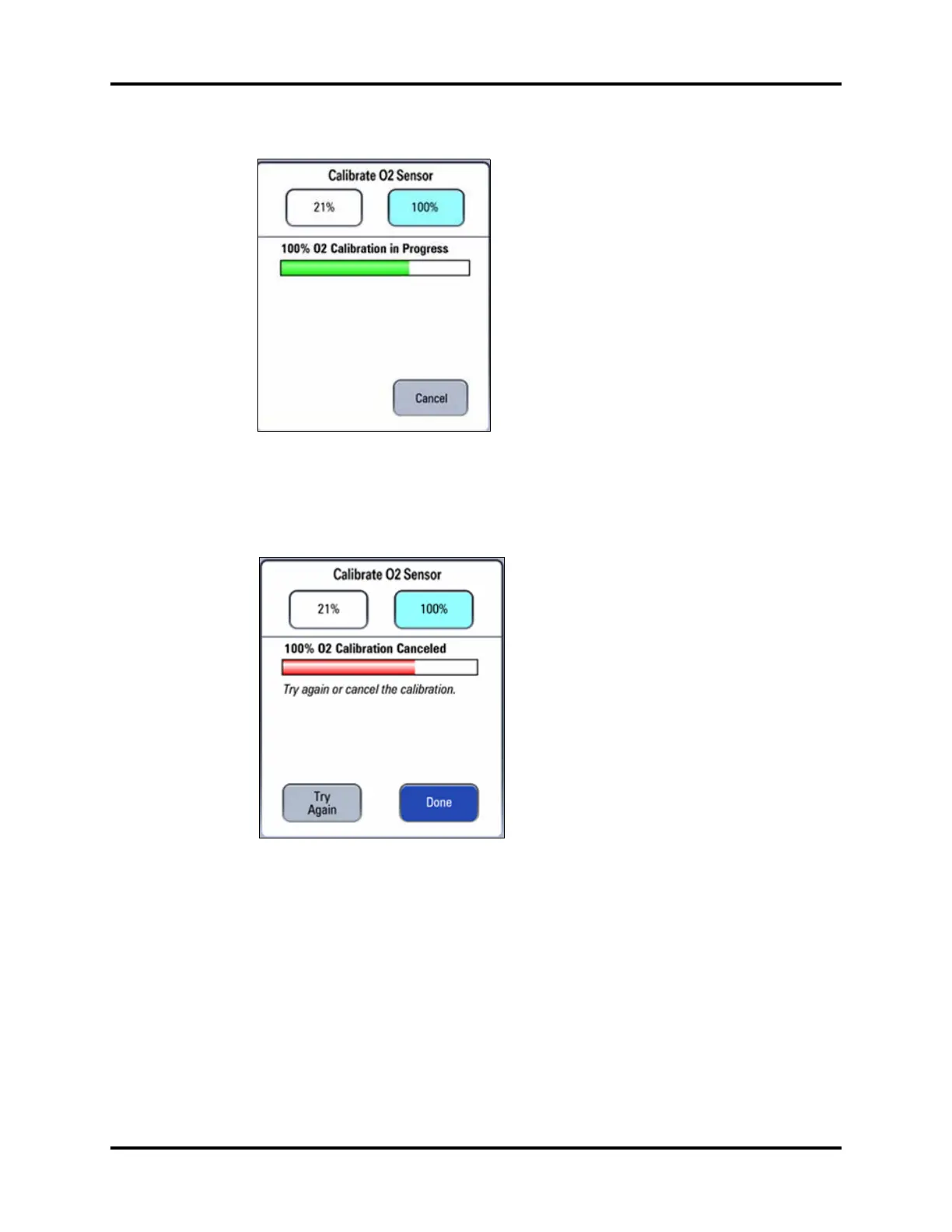

FIGURE 4-7
6. The screen shown below is displayed if the ongoing calibration is canceled. Select Try Again to
do the calibration again.Select Done to exit the calibration screen.
FIGURE 4-8
7. The screen shown below is displayed if the calibration has failed. Select Try Again to do the
calibration again.Select Done to exit the calibration screen.
Version 02.01.00 and higher – A Fail code (e.g., AA BB CC DD) is displayed if 100% O2 Calibration has
failed.
