A5/A3™ Service Manual
046-001141-00
4 - 21
Calibration
System Calib
ration

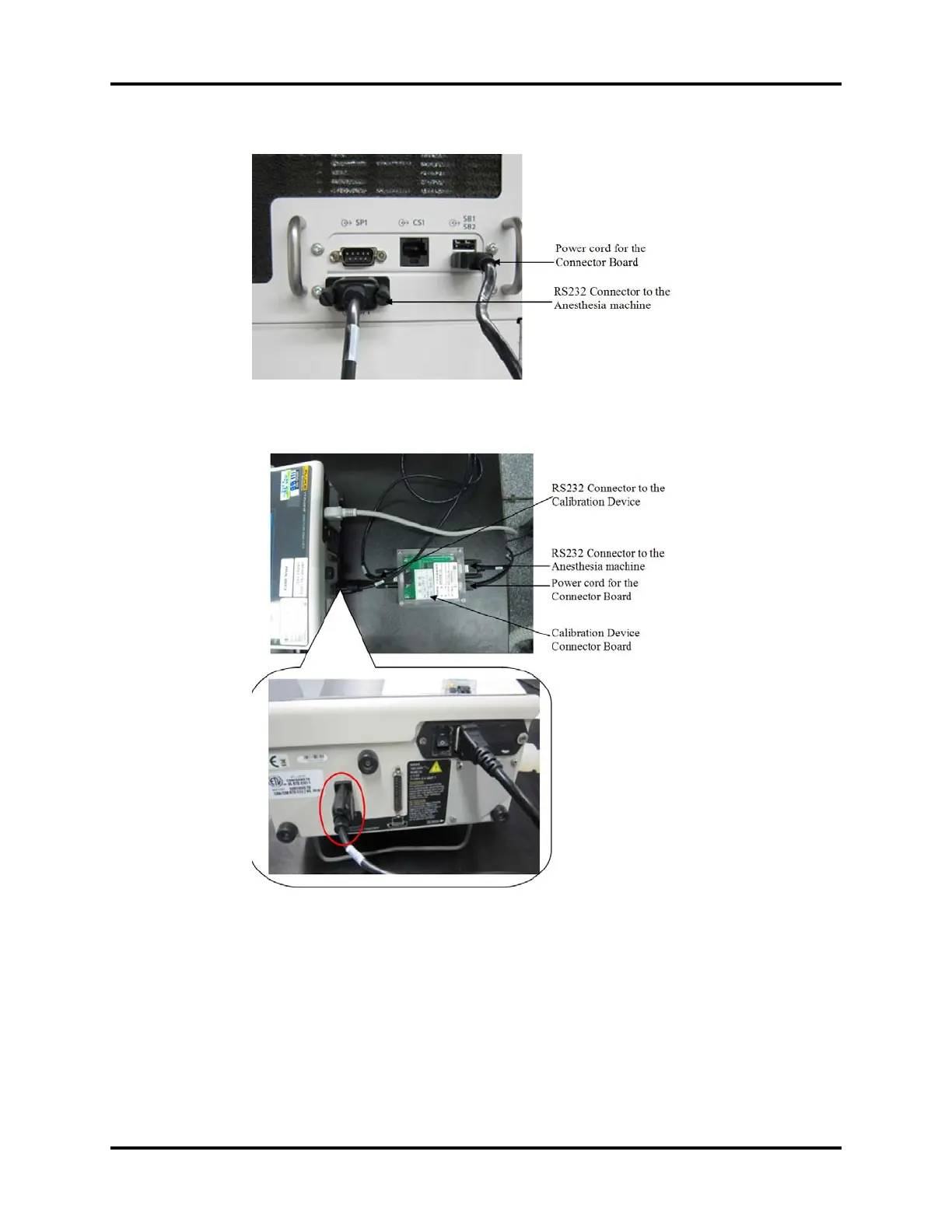

FIGURE 4-19
Cable connections at the anesthesia machine end
FIGURE 4-20
Cable connections at the calibration device (
V
T Plus) end
5.
Set up the calibration device as described below
.
T
o set the
V
T-Plus:
a.
Gas Settings: Press the
Setup button, select
Setti
ng->ENTER->Gas Settings->MODIFY
->Gas
Type->O2->B
ACK->BACK.
206
208
