System Calibration Calibration
4 - 26 046-001141-00 A5/A3™ Service Manual

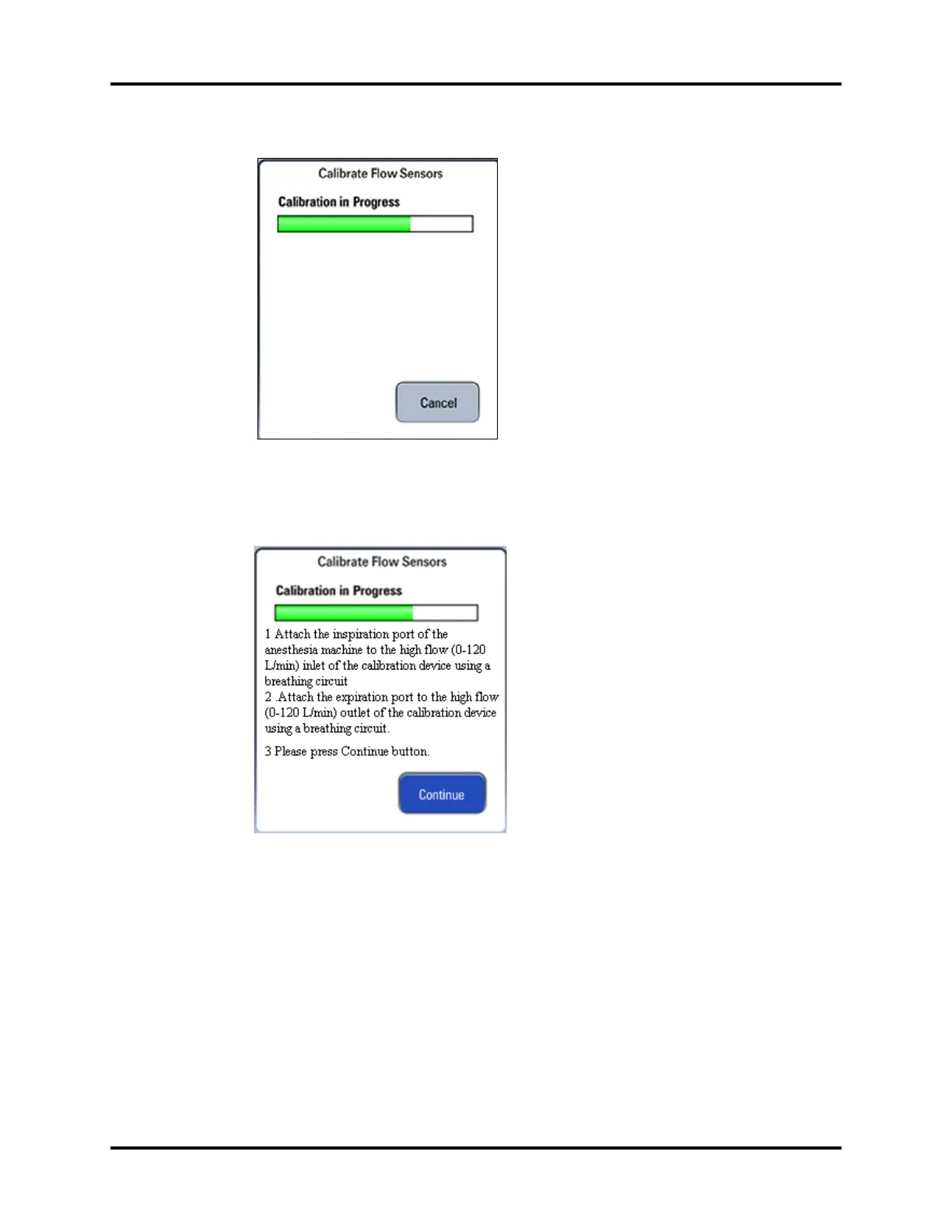

FIGURE 4-30
12. The menu shown below is displayed after the low flow channel calibration is completed.
FIGURE 4-31
13. Connect the high flow channel of the calibration device following the on-screen instructions
shown below.
