System Calibration Calibration
4 - 42 046-001141-00 A5/A3™ Service Manual
4.3.4.1 Calibration Procedures
NOTE: Before pressure calibration, make sure that the tubes are not leaky
when connected.
NOTE: Do not move or press the tubes during calibration.
NOTE: You can select VT Plus for auto calibration. You can also select pressure
calibration device which satisfies the accuracy requirement for manual
calibration. Manual calibration is available in version 1.03.00 and
higher.
4.3.4.1.1 Auto Calibration
Follow these steps to calibrate pressure sensors and the PEEP valve.
1. Make sure that the anesthesia machine is in standby mode.

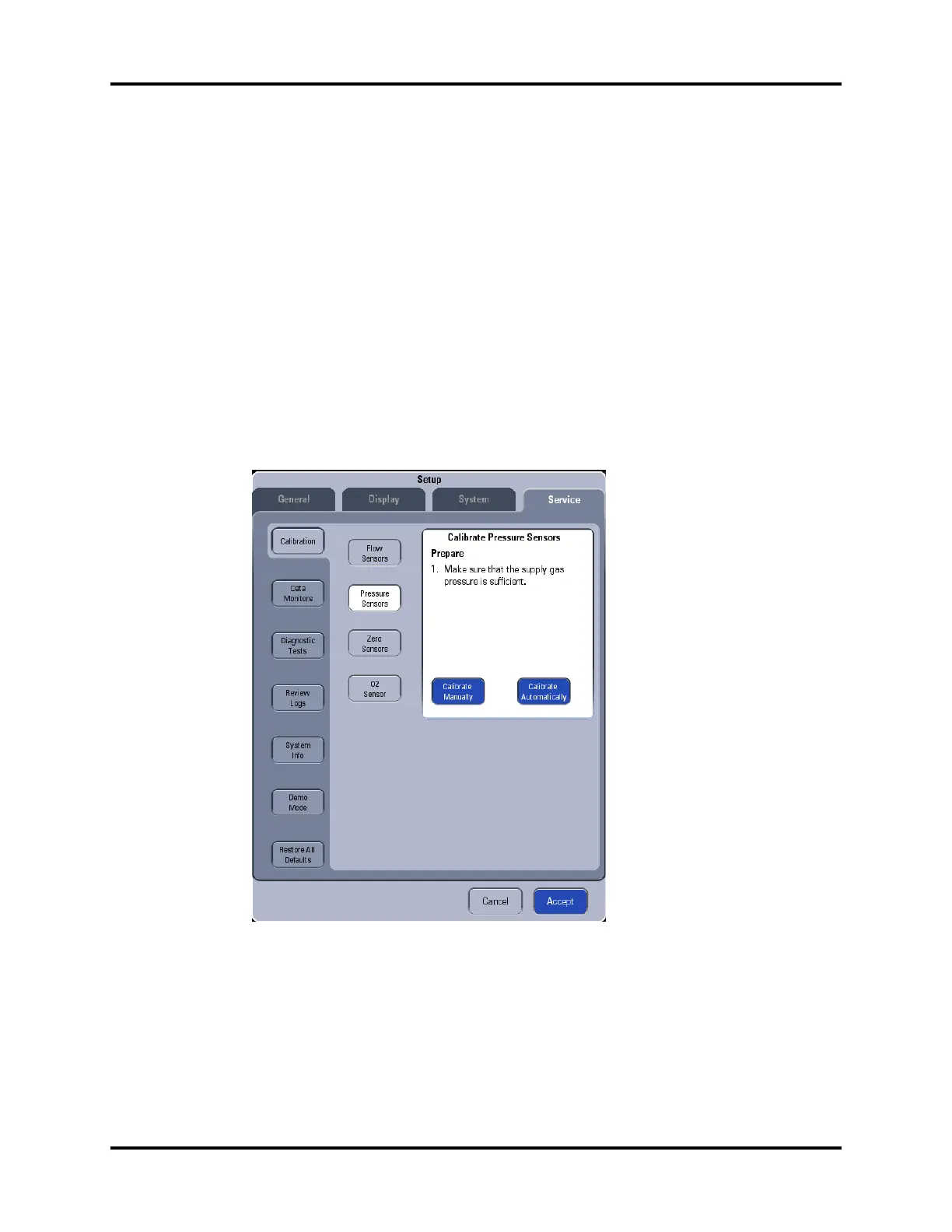

2. Select Setup-> Service-> Calibration-> Pressure Sensors to access the screen shown below.
FIGURE 4-48
3. Select Calibrate Automatically button to open the menu shown below.
To Next Page
