A5/A3â„¢ Service Manual 046-001141-00 5 - 21
Repair and Troubleshooting Pneumatic Circuit System Problems

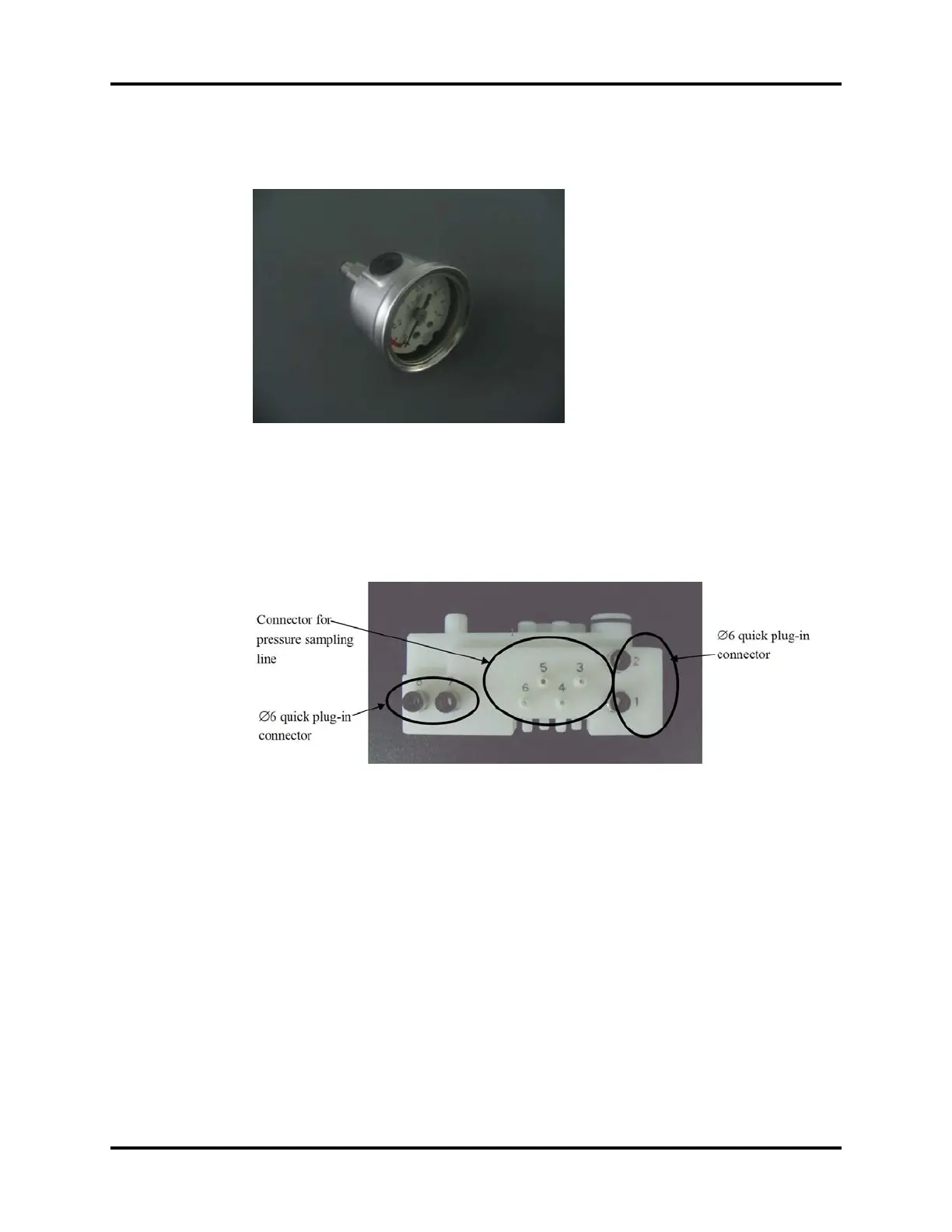

1 MPa (10bar) test pressure gauge:
FIGURE 5-8
5.3.1.1 Precautions for Use of Circuit Adapter Test Fixture
There are four connectors for pressure sampling lines and four Ø6 quick plug-in connectors with
number marked on the circuit adapter test fixture, as shown below.
FIGURE 5-9
The connectors for pressure sampling lines can be connected with Ø6 silicone tubes and the Ø6
quick plug-in connectors with PU tube (6X100), PU tube (6X200) and PU tube (6X300), as shown
below.
