Mindray A3 - Page 362

Disassemble the Assemblies Repair and Disassembly
6 - 22 046-001141-00 A5/A3™ Service Manual

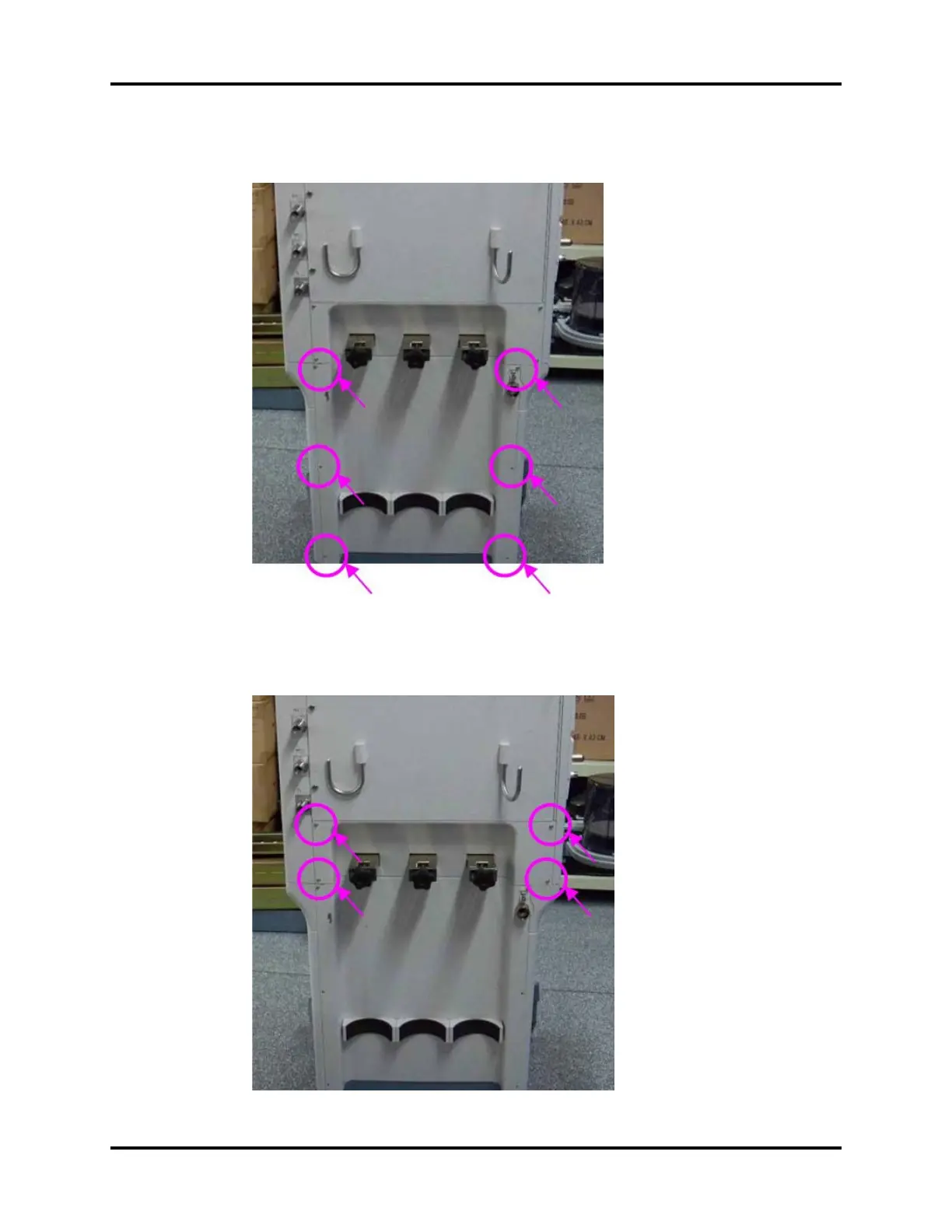

3. Unscrew the six screws on the lower rear panel assembly to remove it.
FIGURE 6-39
4. Unscrew the four screws on the upper rear panel (yoke cover) to remove it.
FIGURE 6-40
