Mindray A3 - Page 403

A5/A3™ Service Manual 046-001141-00 6 - 63
Repair and Disassembly Disassemble the Breathing System

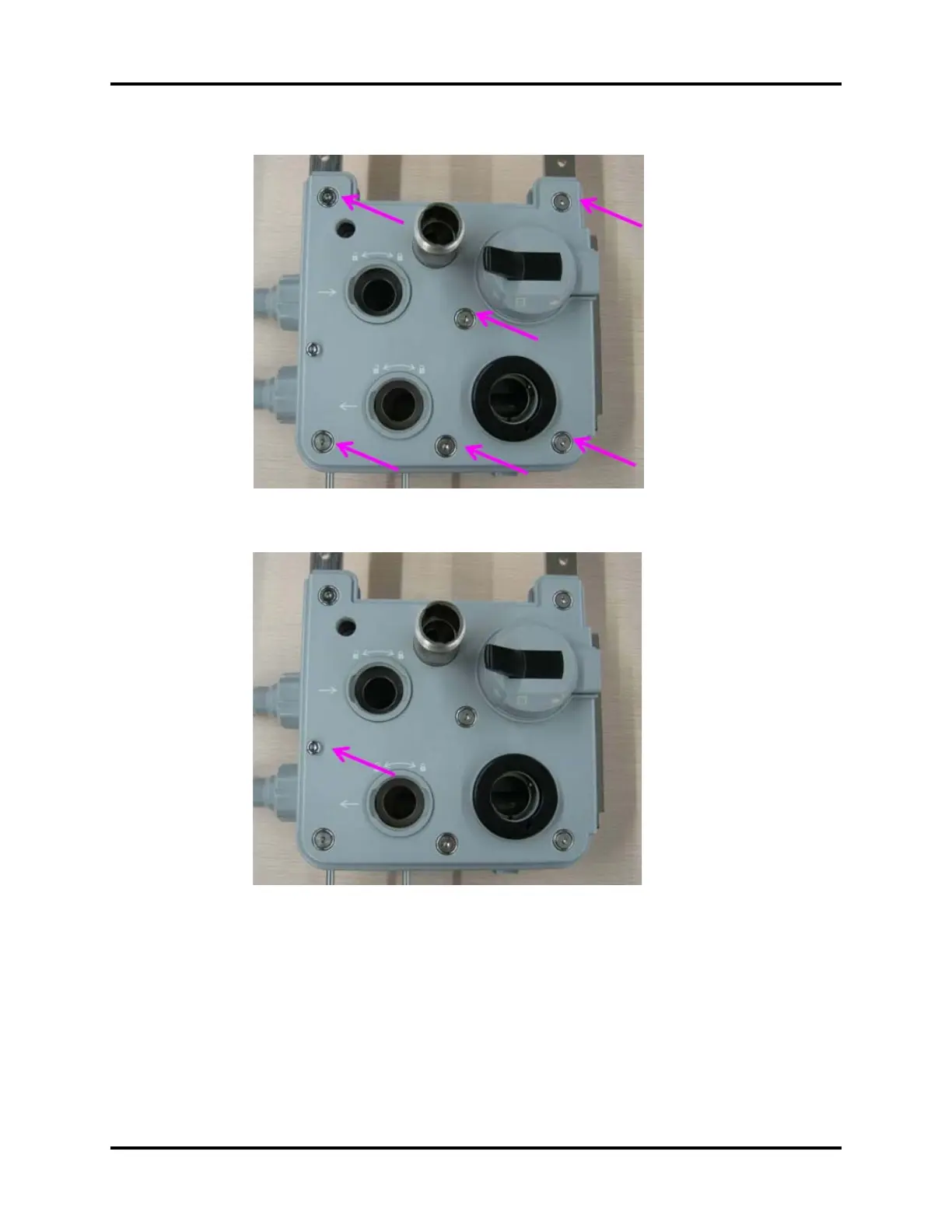

FIGURE 6-121
4. Loosen the captive screws on the upper cover.
FIGURE 6-122
5. Hold the upper cover assembly tightly and pull it up to remove it.
