Mindray A3 - Page 405

A5/A3™ Service Manual 046-001141-00 6 - 65
Repair and Disassembly Disassemble the Breathing System

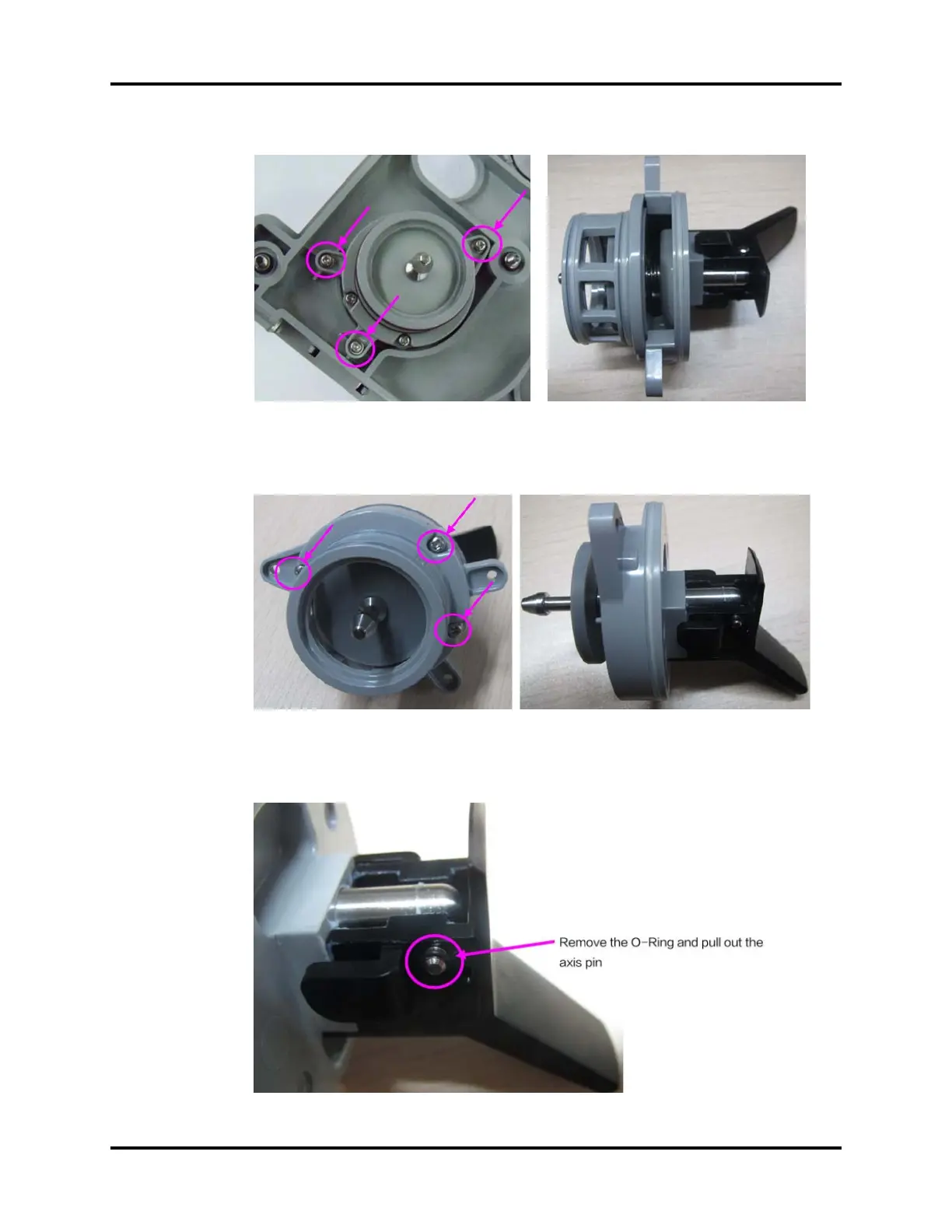

FIGURE 6-125
3. Unscrew the three screws as show in the picture.
FIGURE 6-126
4. Remove the O-Ring and pull out the axis pin.
FIGURE 6-127
