A5/A3™ Service Manual 046-001141-00 2 - 5
Installation Guide Assembly

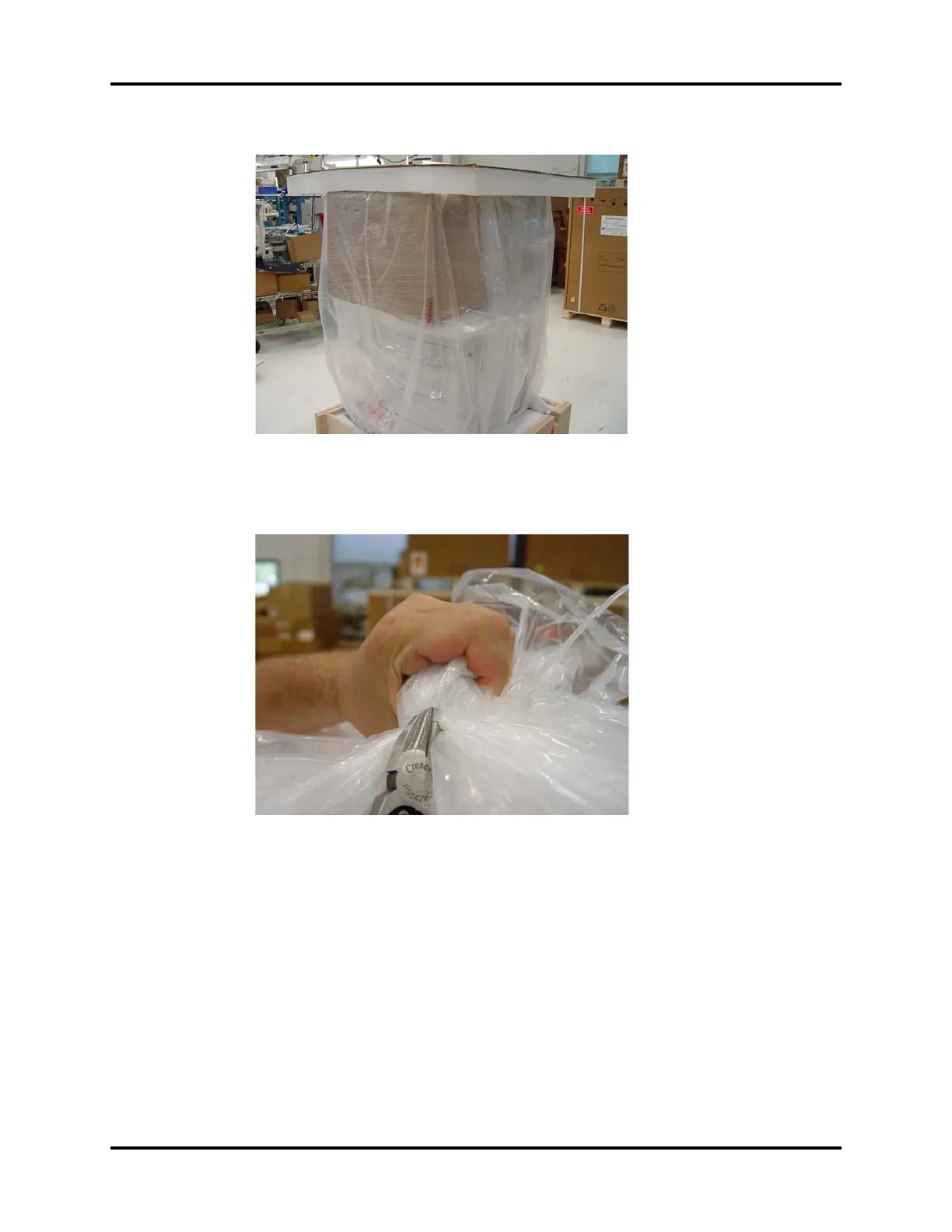

FIGURE 2-4
6. Cut the plastic tie wrap as shown below. Roll down the plastic bag from the unit.
FIGURE 2-5
7. Using a pair of scissors, cut the plastic wrap from the A5/A3 near the back of the unit, using care
to not scratch or otherwise damage the unit. Remove and discard the plastic wrap. Remove the
empty box on the tray from the unit.
