4 - 44
Operator’
s Manual of Anesthesia
System
4.7.8.5
I
nformation
Displays the equipment ID
, MAC addr
ess and system feature
s status.

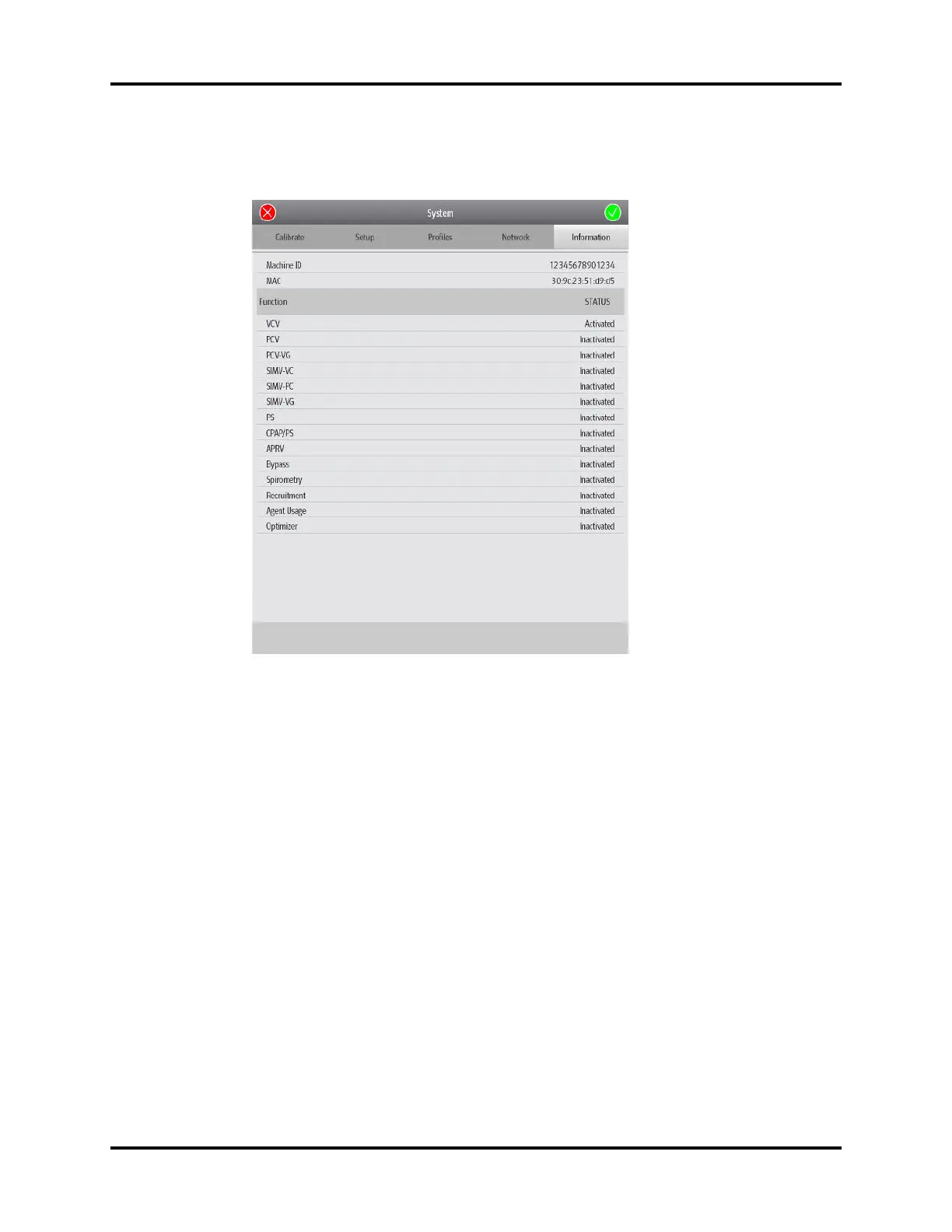

Figure 4-41
Setup > System> Information menu
4.7.9
Ser
vice T
ab
Accessible only b
y M
indray-authorized se
r
vice personnel. Please contact Mindray T
echnical Support
for assistance
.
101
103
