2 - 4 Operator’s Manual of Anesthesia System
2.2 Equipment Views
2.2.1 Main Unit (Front View)

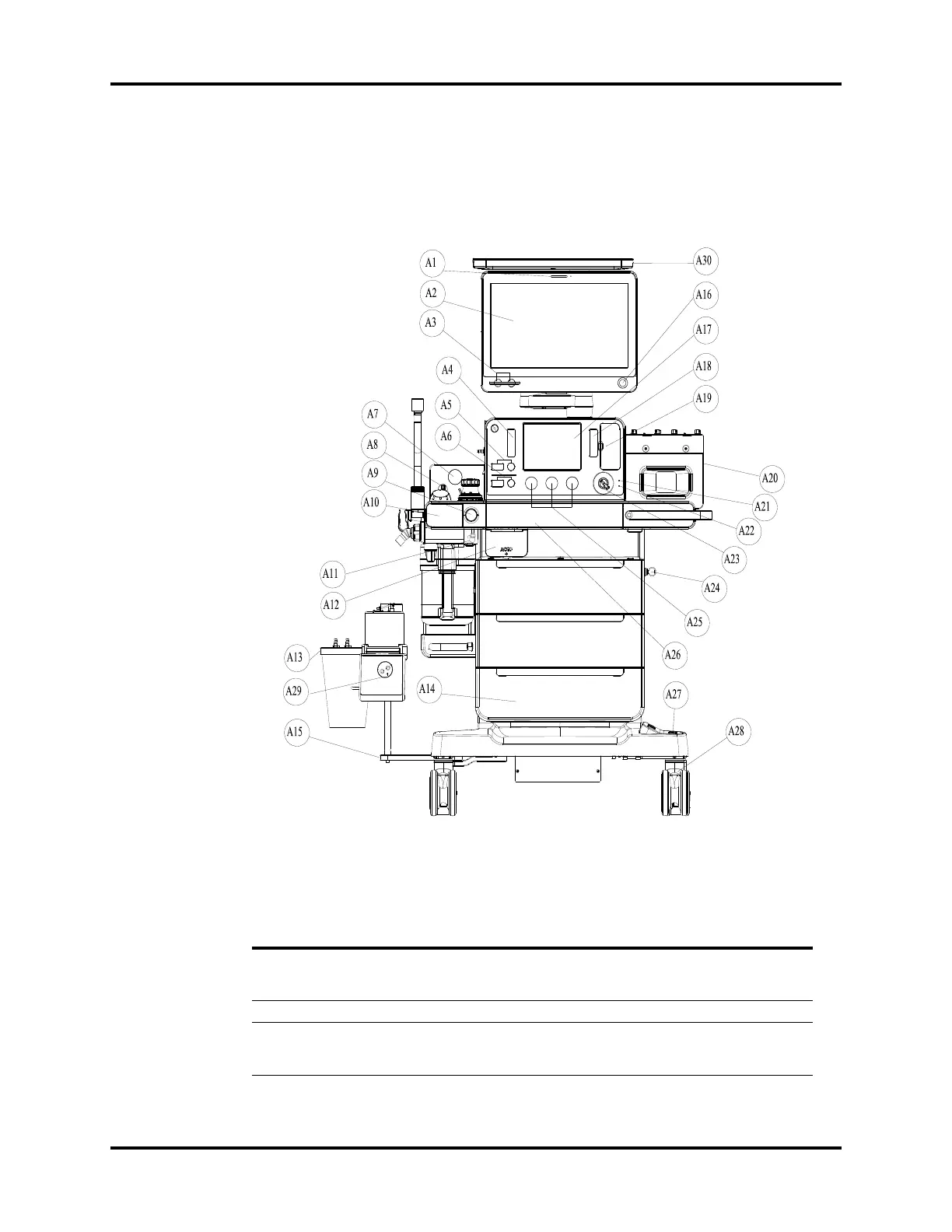

Figure 2-1 Main Unit (Front View)
PARTS DESCRIPTION
A1 Alarm LED The alarm LED may turn red, yellow or cyan, indicating
different priorities. Red = high priority, yellow = medium
priority, cyan = low priority, off = no alarms.
A2 Main Screen See "System Interface" on Pages 4-1.
A3 The flow or O
2
concentration
control knob of the electronic
flow control system.
Rotate the knob to adjust the flow or O
2
concentration.
