2.2.5 Main Unit (Top View)

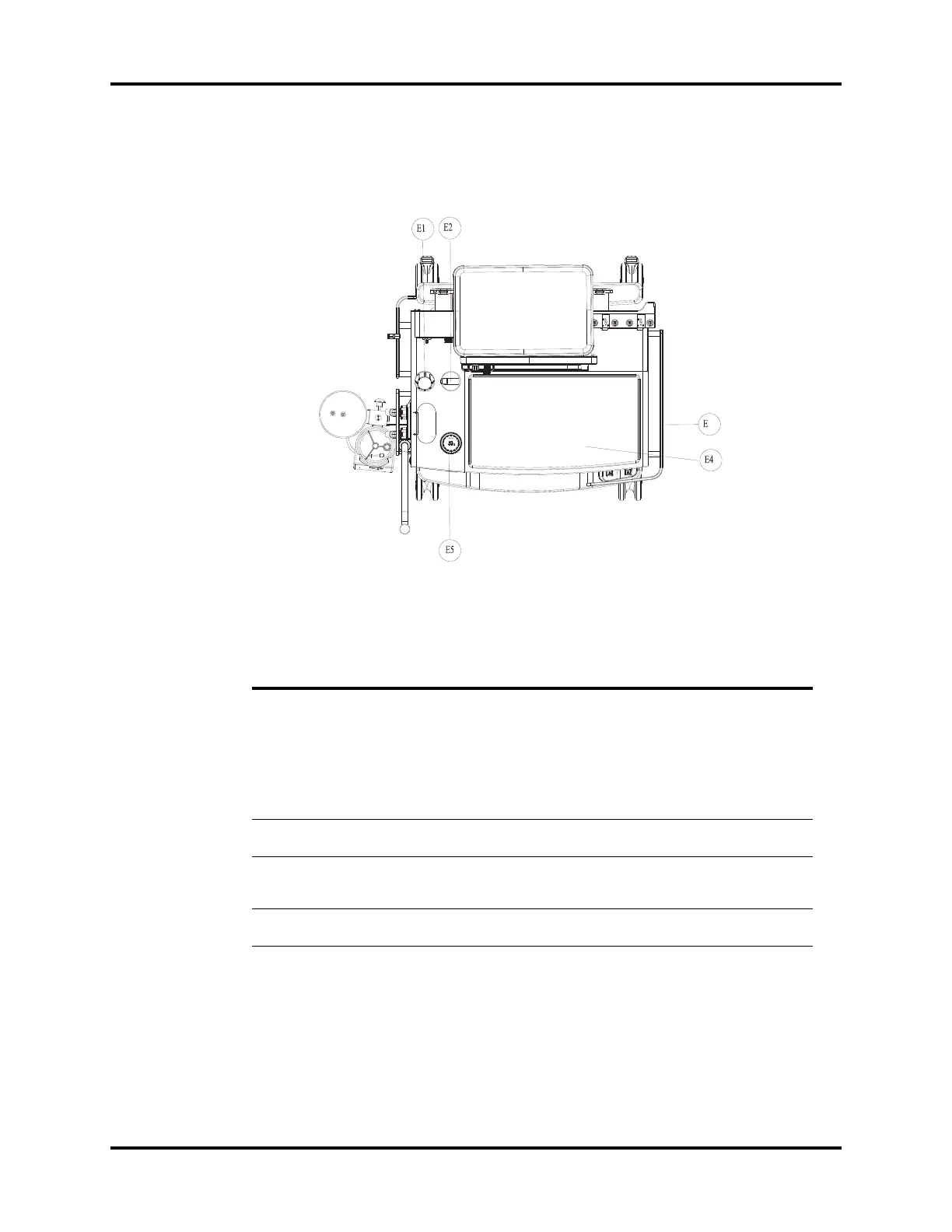

Figure 2-5 Main Unit (Top View)
PARTS DESCRIPTION
E1 Airway pressure gauge
1
Used to indicate the airway pressure of patients.
NOTE: It is normal to have a minor difference
between the airway pressure gauge
reading and the electronically
monitored value. When the difference
is greater than 15%, please contact
your service personnel or Mindray.
E2 Manual/Auto switch Used to switch between the automatic ventilation and
manual ventilation modes.
E3 Handle The handle is intended to be used for pushing/pulling/
rotating the anesthesia system, with a maximum force
capacity 80 kgf (176 lbf).
E4 Workbench Workbench surface (stainless steel), with a maximum force
capacity of 30 kgf (66 lbf).
