4 - 20 Operator’s Manual of Anesthesia System

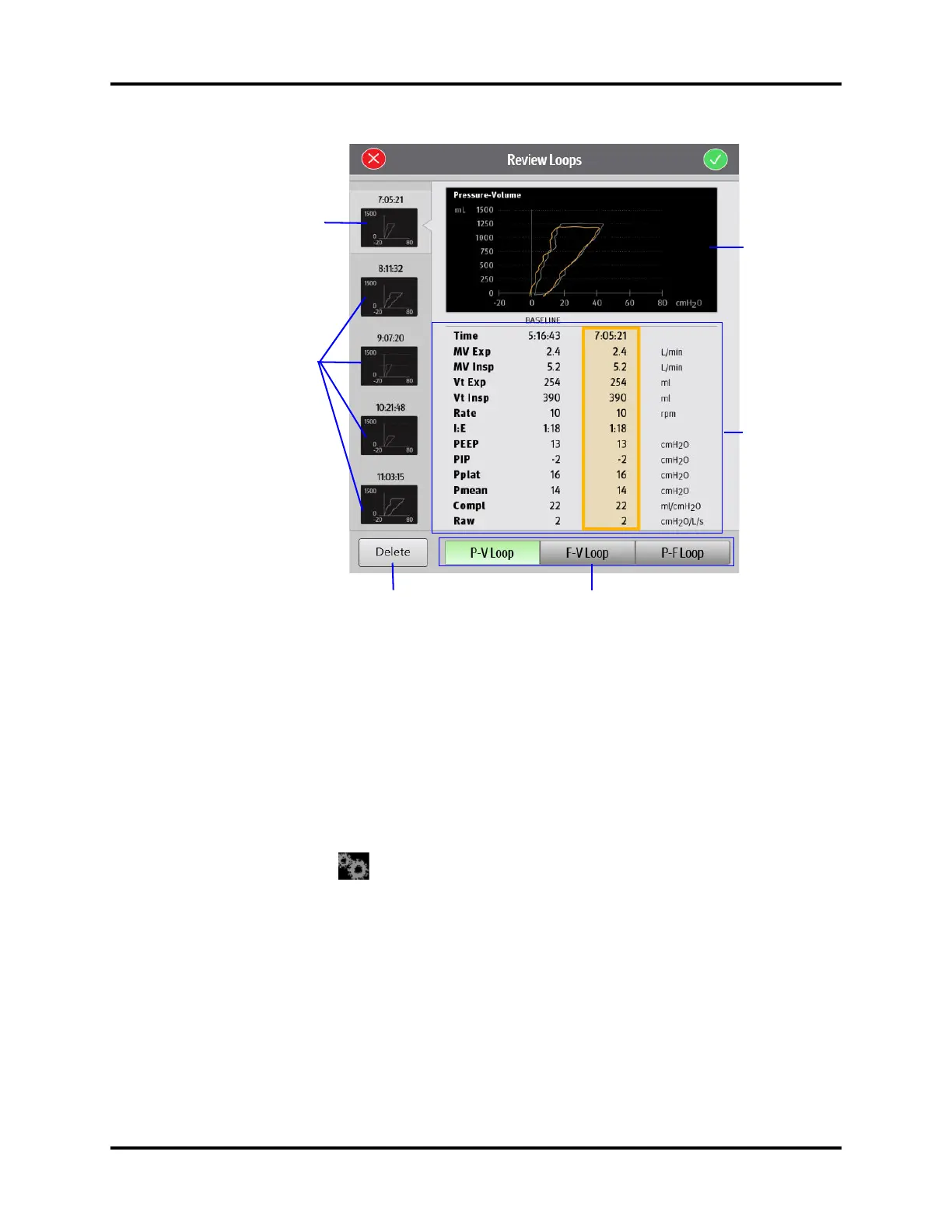

Figure 4-22 Review Loops window
Parameter data zone: Displays the monitoring parameter data related to the saved baseline loop
and reference loops. Listed parameters include: time, minute expiratory volume (MV Exp), minute
inspiratory volume (MV Insp), expired tidal volume (Vt Exp), inspiratory tidal volume (Vt Insp),
inspiration/expiration ratio (I:E), positive end-expiratory pressure (PEEP), respiratory rate
(RR), peak inspiratory pressure (PEAK), inspiratory plateau pressure (Pplat), mean pressure
(Pmean), dynamic airway compliance (Compl) and airway resistance (Raw).
4.4.3 Mini Trends Screen
Mini trends screen displays trend waveforms that correspond to the waveforms. The Mini Trends
duration can be set as follows:
1. Select the icon > [Screen] tab.
2. Set [Mini Trends Duration] to [5 Min], [15 Min], [30 Min], [1 Hour] or [2 Hour].
Digital data
zone
Selected loops
(small)
Selected
reference
loops (large)
Delete a loop
Unselected
loops
Loop Type
