2.2.4 Main Unit (Right View)

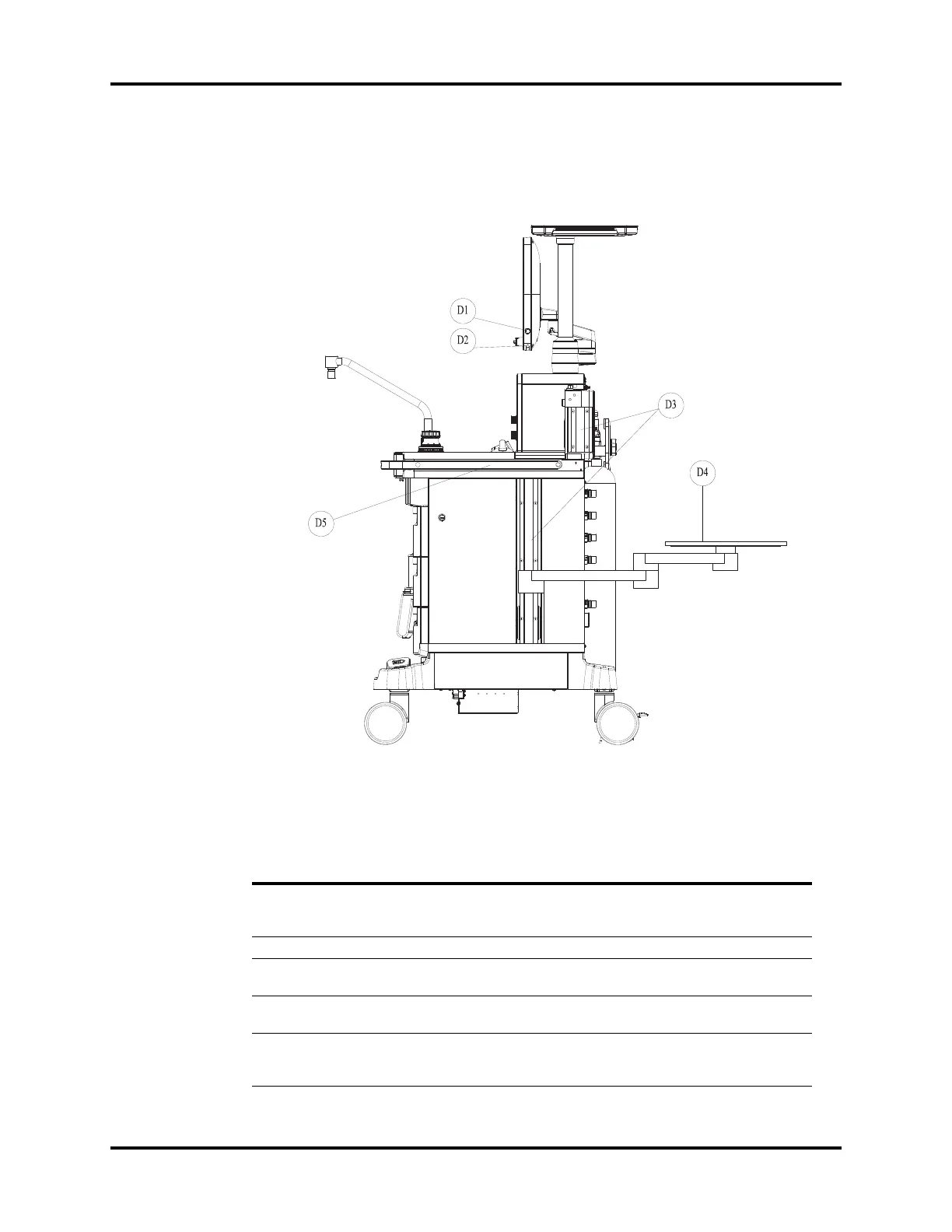

Figure 2-4 Main Unit (Right View)
PARTS DESCRIPTION
D1 Work lamp switch Used to turn on/off the work lamp. Three settings are
available: off, low-light and high-light. Users can only turn
on the work lamp when the system is switched on.
D2 Work lamp Located beneath the display to illuminate the worktable.
D3 Installing rail Used to install the standard attachment arms of the
monitor and other equipment.
D4 External auxiliary worktable
(optional)
External auxiliary worktable, 180-degree rotatable
horizontally. Maximum supporting weight: 15kg (33 lbs).
D5 Handle The handle is intended to be used for pushing/pulling/
rotating the anesthesia system, with a maximum force
capacity 80 kgf (176 lbf ).
