Operator’s Manual of Anesthesia System 4 - 33
System Interface Setup Menu
Clean Screen
When the [Clean] soft key is selected, the system will lock the screen for 10 seconds so that the
display can be cleaned.
4.7.6 Export System Data

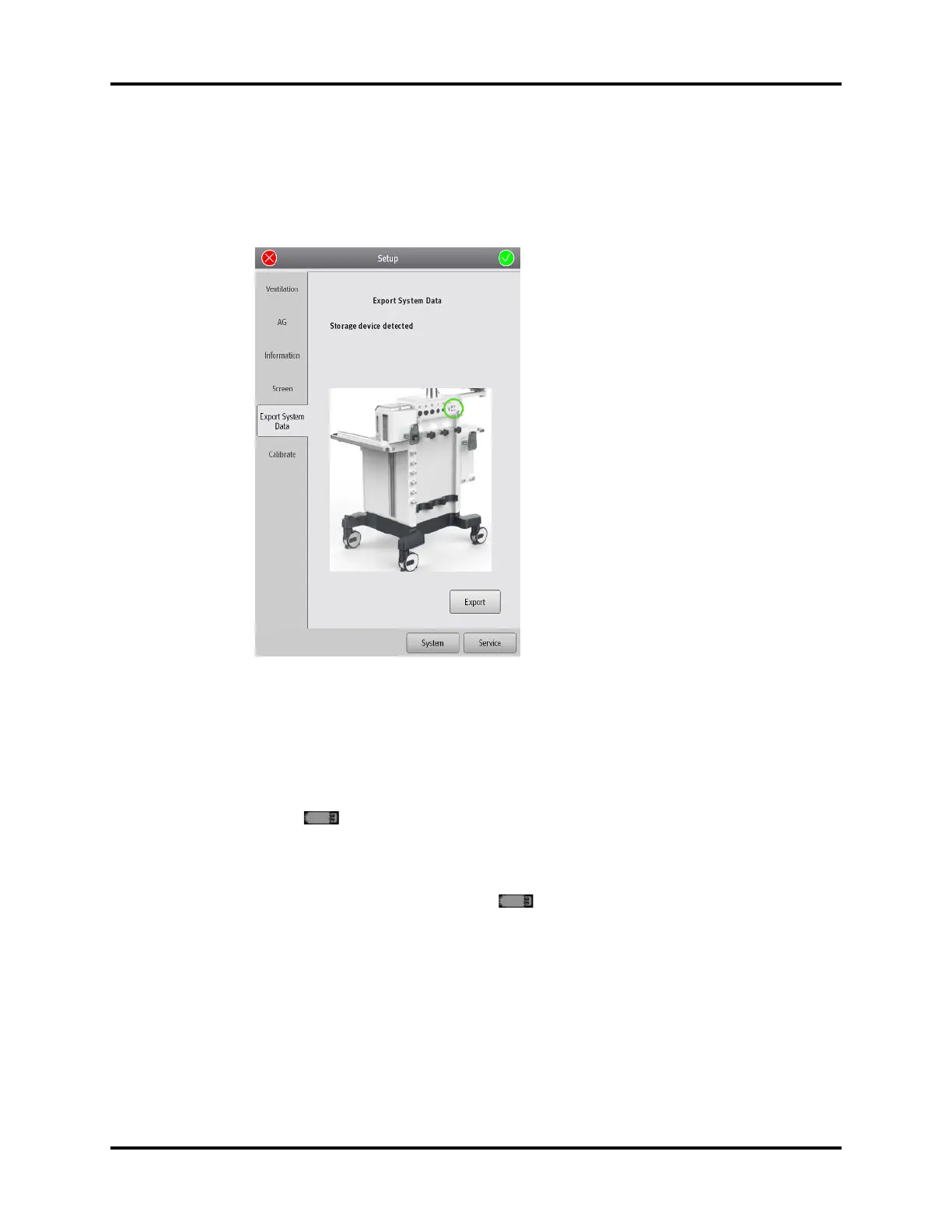

Figure 4-35 Export System Data
The anesthesia system can export system data. The system data includes the equipment information,
logs, monitoring data, system information, historical data, captured screens and network information.
To export data from the system, follow the steps below:
1. As per the instructions on the screen, insert a U disk to the SB interface of the anesthesia system.
The icon is displayed on the Main Screen.
2. Select the [Export] soft key, and the system will check the remaining space of the U disk. If the
remaining space is enough, the system will export the system data. Exported file is encrypted in
the format of blg except the captured screens.
3. After the export is complete, select the icon.
4. Select [Ye s ] in the pop-up dialog box, and remove the U disk.
