Installation and Disassembly High-flow Nasal Cannula Oxygen (HFNC) Tube
3.6 High-flow Nasal Cannula Oxygen (HFNC)
Tube
1. Hang the humidifier on the bracket on the side of the anesthesia system.

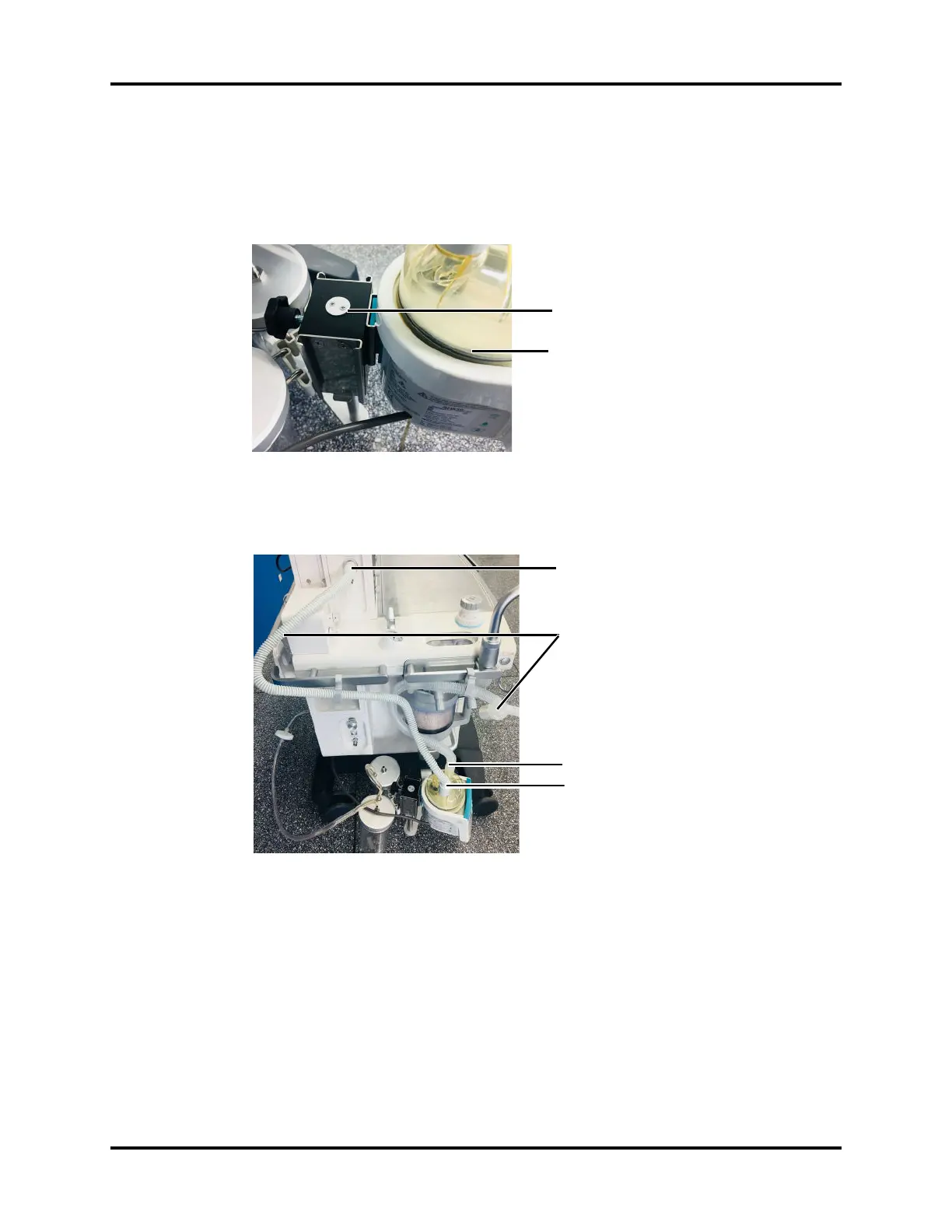

Figure 3-4 Install the humidifier
2. Connect the gas inlet of the humidifier and the HFNC outlet of the anesthesia system with a
breathing tube. Connect the gas outlet of the humidifier and the patient with a breathing tube.
Figure 3-5 Connection hoses
3. To disassemble the humidifier, draw out the breathing tube and lift the humidifier upward.
HFNC outlet
Breathing tubes
Humidifier gas outlet
Humidifier gas inlet
