Operator’s Manual of Anesthesia System 4 - 25
System Interface System Soft Key
4.6.1.2.3 Zooming
In the Graphic Trends menu, you can set the zooming to [1 Min], [5 Min], [10 Min], [15 Min],
[30 Min], [1 Hour] and [2 Hour].
4.6.1.2.4 Display Group
In the Graphic Trends menu, you can set the display group to[Gas], [Gas Flow], [Ventilator] and [All].
4.6.1.3 Event Log
The [Event Log] tab can record the technical alarms, physiological alarms, capture events, power-off
delays, standbys, canceled power-off delays, system time changes, lung recruitments, system self-
tests and leak tests.

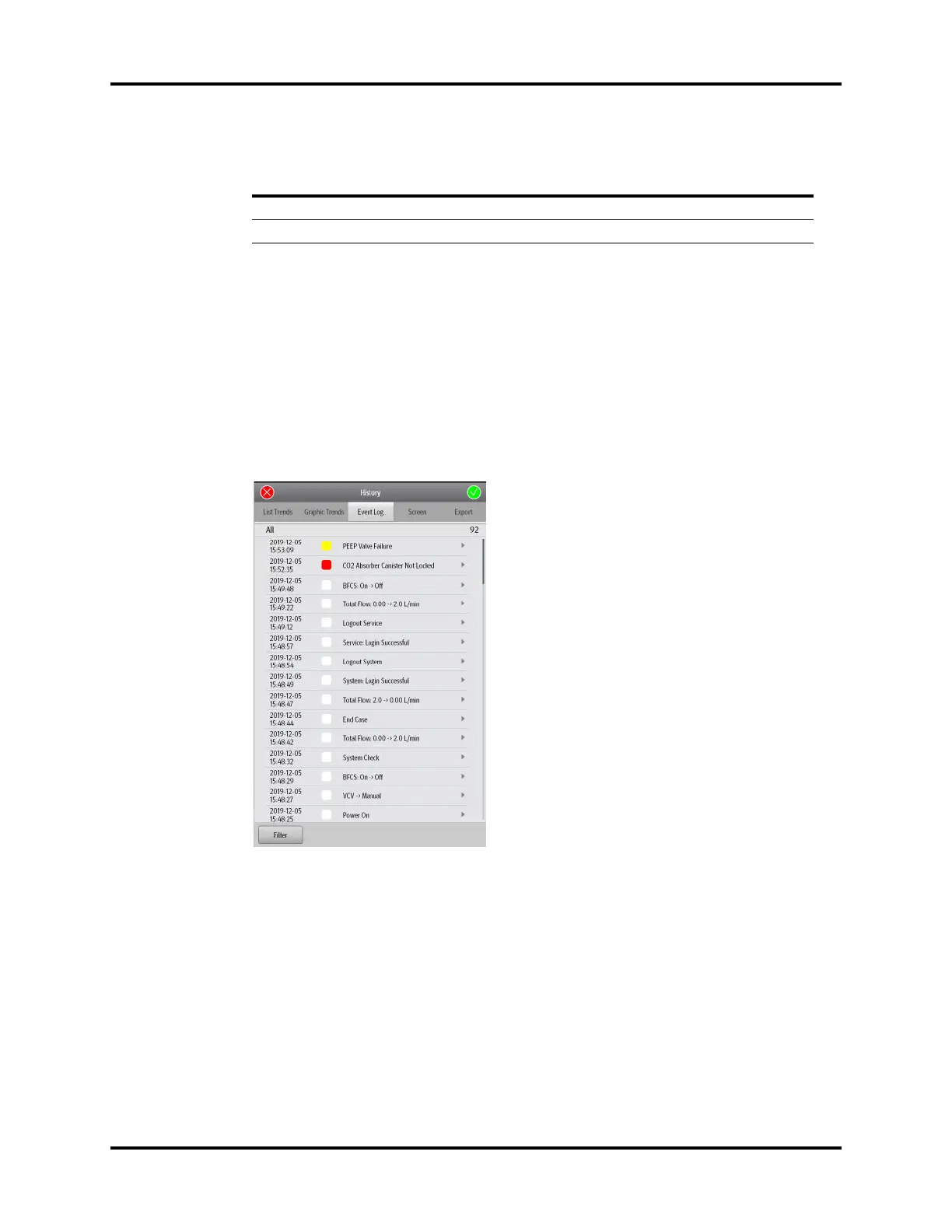

Figure 4-29 Event Log
NOTE: Event logs will not be cleared after the anesthesia system powers off.
NOTE: The system can store up to 10,000 events. After the number of events
exceeds 10,000, the earliest event will be overwritten by the latest event.
4.6.1.3.1 Filter
In the Event Log menu, you can set [Filter] to [High], [Medium], [Low], [Informational], [Activity]
and [All On].
4.6.1.4 Screen
You can select and delete captured screens. Select the [Capture Event/Screen] soft key on the Main
Screen to capture the current screen and save it as an image. You can save up to 50 captured screens.
BUTTON FUNCTION
Previous Event
The cursor moves from the current event to the previous event.
Next Event
The cursor moves from the current event to the next event.
Table 4-5 Graphic Trend Events Buttons
