Operator’s Manual of Anesthesia System 4 - 45
System Interface Status Screen
4.8 Status Screen
4.8.1 Volume Exchanger
The Status Screen does not display the volume exchanger when in standby, ACGO and Monitor modes.
4.8.1.1 Automatic Ventilation, Flow Pause or Bypass
The system provides a VTi loop and dynamic lung to indicate the operation status of the volume
exchanger during ventilation.

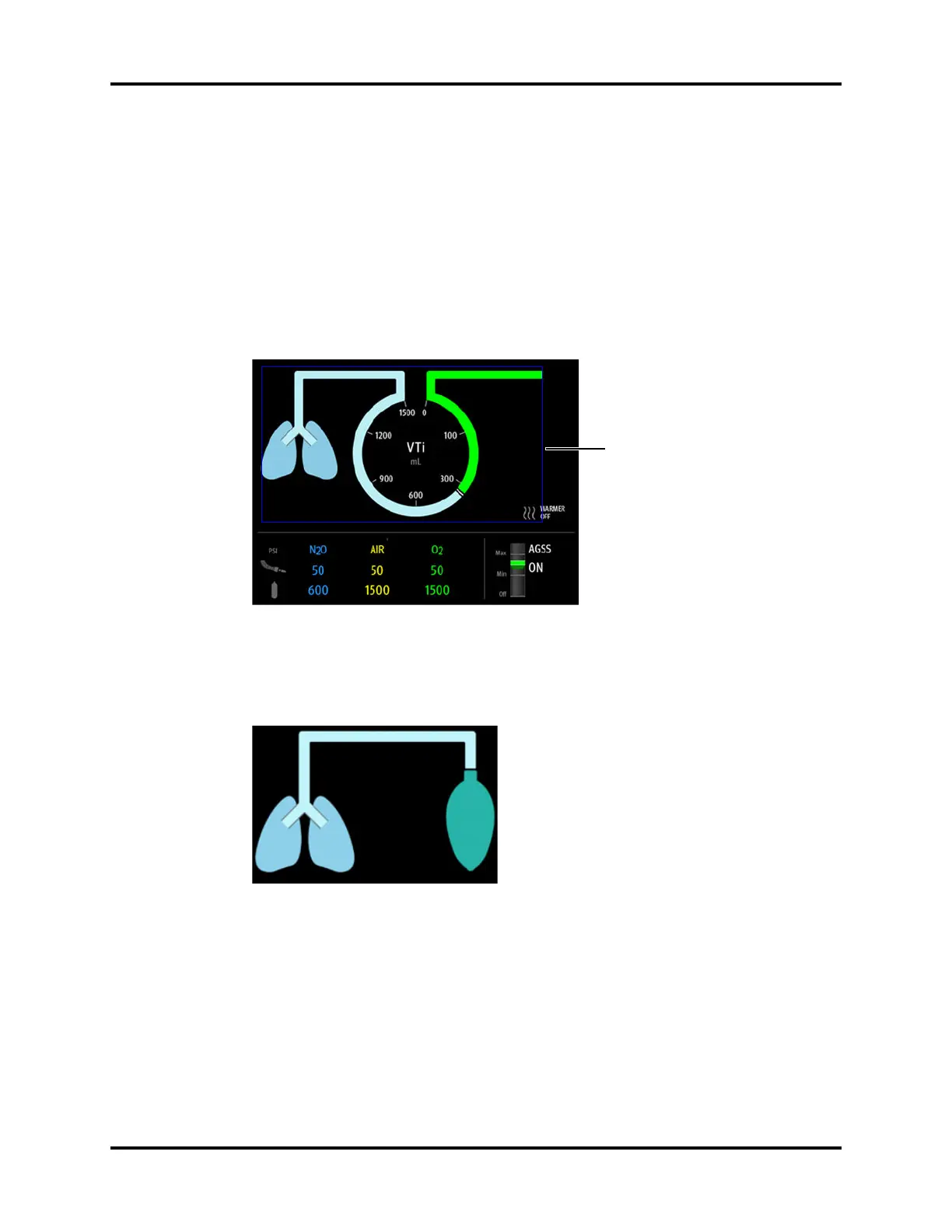

Figure 4-42 Volume exchanger (in automatic ventilation, flow pause or Bypass mode)
4.8.1.2 Manual Ventilation
The system provides a dynamic bag and dynamic lung to indicate the ventilation status.
Figure 4-43 Manual Ventilation Mode
4.8.2 Gas Supply Pressure Monitoring
The anesthesia system monitors the gas supply pressure electronically. When the gas supply pressure
triggers an alarm, the pressure value on the screen flashes and is highlighted in the color matching
the alarm priority.
