Mindray DC-40 User Manual

13-16 Probes and Biopsy

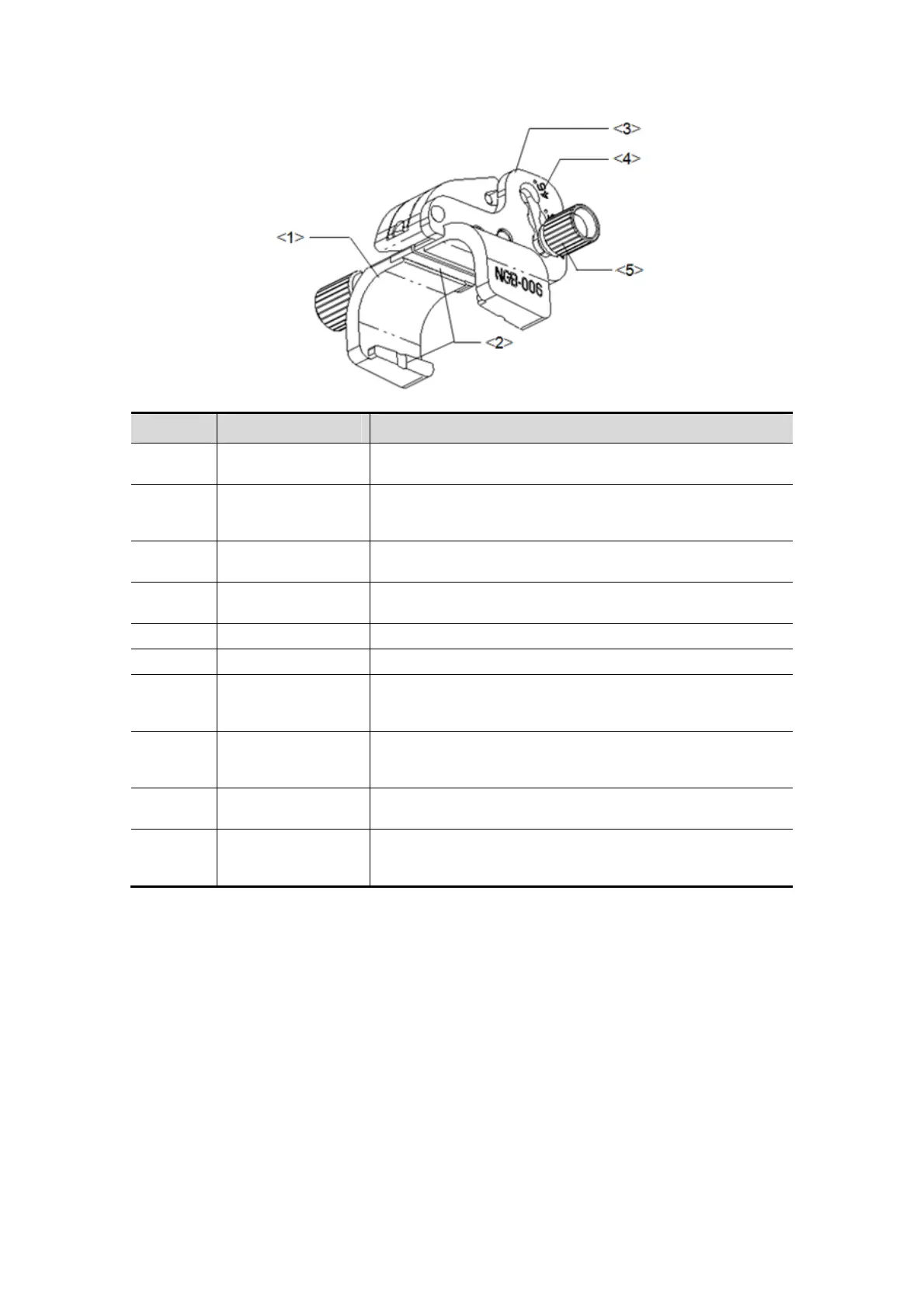

No. Name Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove and tab of
the needle-guided
bracket
Respectively matched with the tab and groove of the
probe.
<3>
Angle adjusting
base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign
(25°,35°,45°)
Matched with the biopsy angle (25°, 35°, 45°).
<5> Angle pinch nut Used for fixing the angle block at a chosen angle.
<6> Angle block Used for fixing the angle block at a certain angle.
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<8>
Specification of
guiding block
(14G)
Matched with the corresponding biopsy needle (14G).
<9>
Guiding hole of
the biopsy needle
Used for installing the biopsy needle.
<10>
Pinch nut of
needle-guided
bracket
Used for locking the needle-guided bracket and the
probe.

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
