Mindray DC-40 User Manual

Probes and Biopsy 13-17

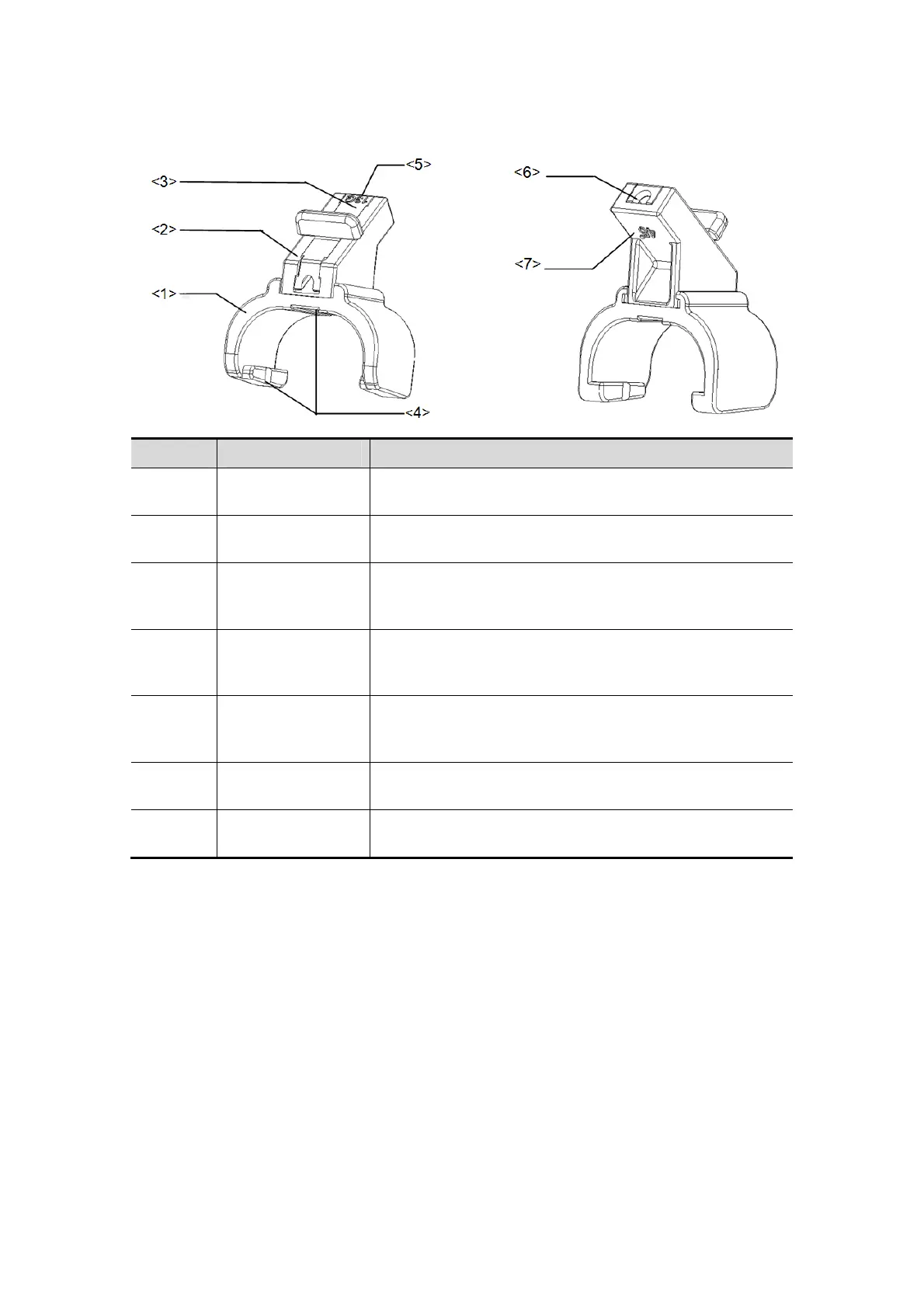

Plastic/needle detachable needle-guided bracket:
No. Name Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
probe.
<2> Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle.
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<4>
Groove and tab of
the needle-guided
bracket
Respectively matches with the tab and groove of the
probe.
<5>
Specification of
guiding block
(13G)
Matched with the corresponding biopsy needle (13G).
<6>
Guiding hole of
the biopsy needle
Used for installing the biopsy needle.
<7>
Specification of
angle block (45°)
The corresponding biopsy angle is 45°.

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
