13-18 Probes and Biopsy
NGB-007

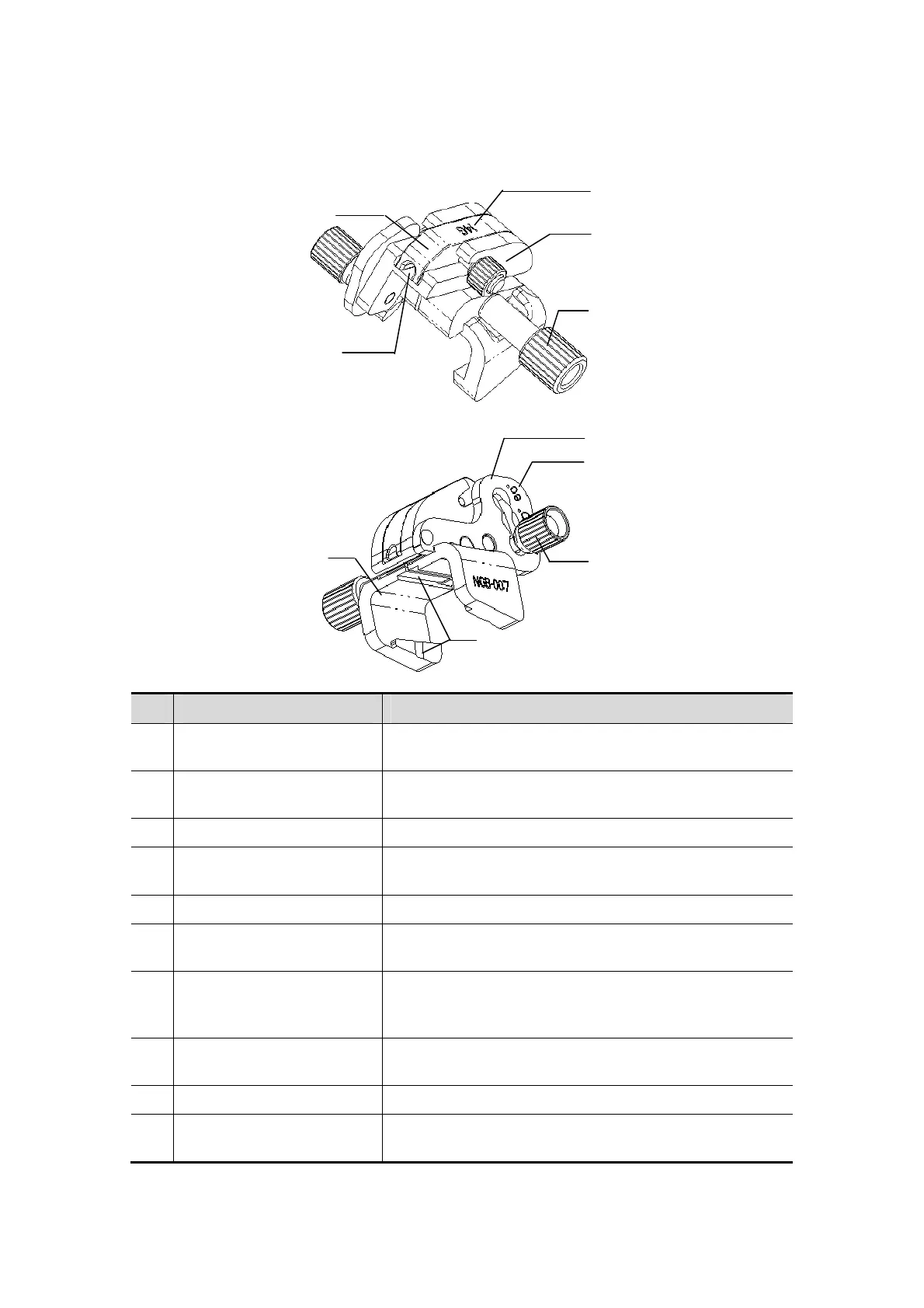

z Metal needle-guided bracket:
No. Name Description
1.
Support of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
2.
Groove and tab of the
needle-guided bracket
Respectively matches with the tab and groove of the
probe
3. Angle adjusting base There are 3 types of angles available to be adjusted.
4.
Angle shift sign(40°, 50°,
60°)
Matched with the biopsy angle (40°, 50°, and 60°).
5. Angle pinch nut Used for fixing the angle lock at a chosen angle.
6. Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used.
7. Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
8.
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
9. Needle guide hole Used for installing the biopsy needle.
10.
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
probe
6
9
7
10
8
2
4
3
5
1
