Mindray DC-40 User Manual

iScanHelper C-3

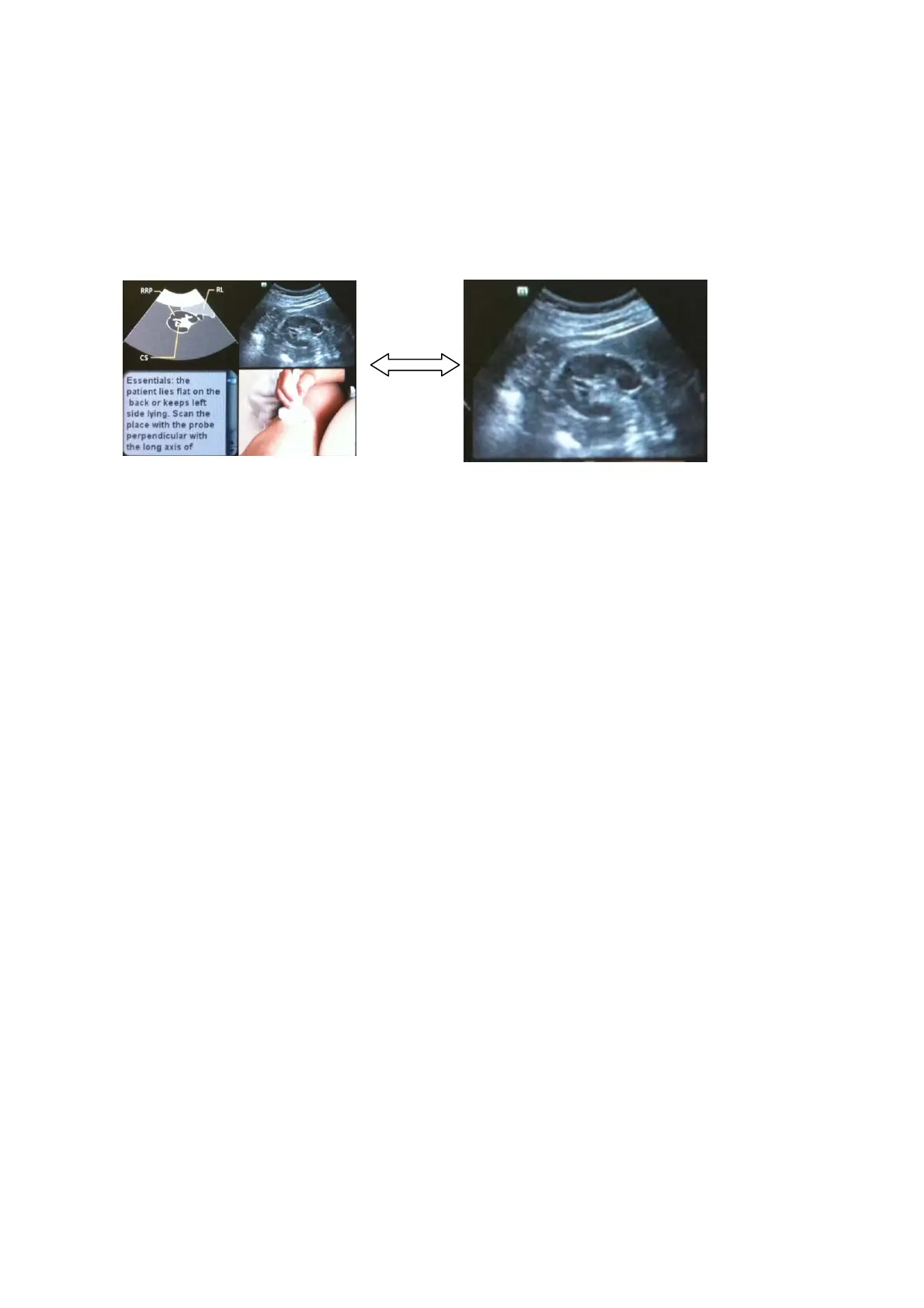

C.4.3 Single/quad-window Display
You can zoom in the anatomic graphic, ultrasonic image as well as scanning picture to view
those information more conveniently.
Press <Cursor> to obtain the cursor. Move the cursor on the anatomic graphic, the ultrasonic
image or scanning tips. Double-click <Set> to go to the single window of each of them.
Double-click single window again to return to quad-window display.
C.5 Measurement, Comments, and Body
Mark
Switching probe or exam, measurement, comments and the body mark are unavailable under
iScanHelper statu

Mindray DC-40 Specifications

General

Touch Screen	Yes
Hard Drive	500 GB
3D/4D Imaging	Yes
Storage Temperature	-20°C to +60°C
Operating Temperature	+10°C to +40°C
Atmospheric Pressure	700 hPa to 1060 hPa
Imaging Modes	B, M, Color Doppler, Power Doppler
Probes	Convex, Linear, Phased Array
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240V AC, 50/60Hz
Display	15-inch color LCD
