2-4 Specifications

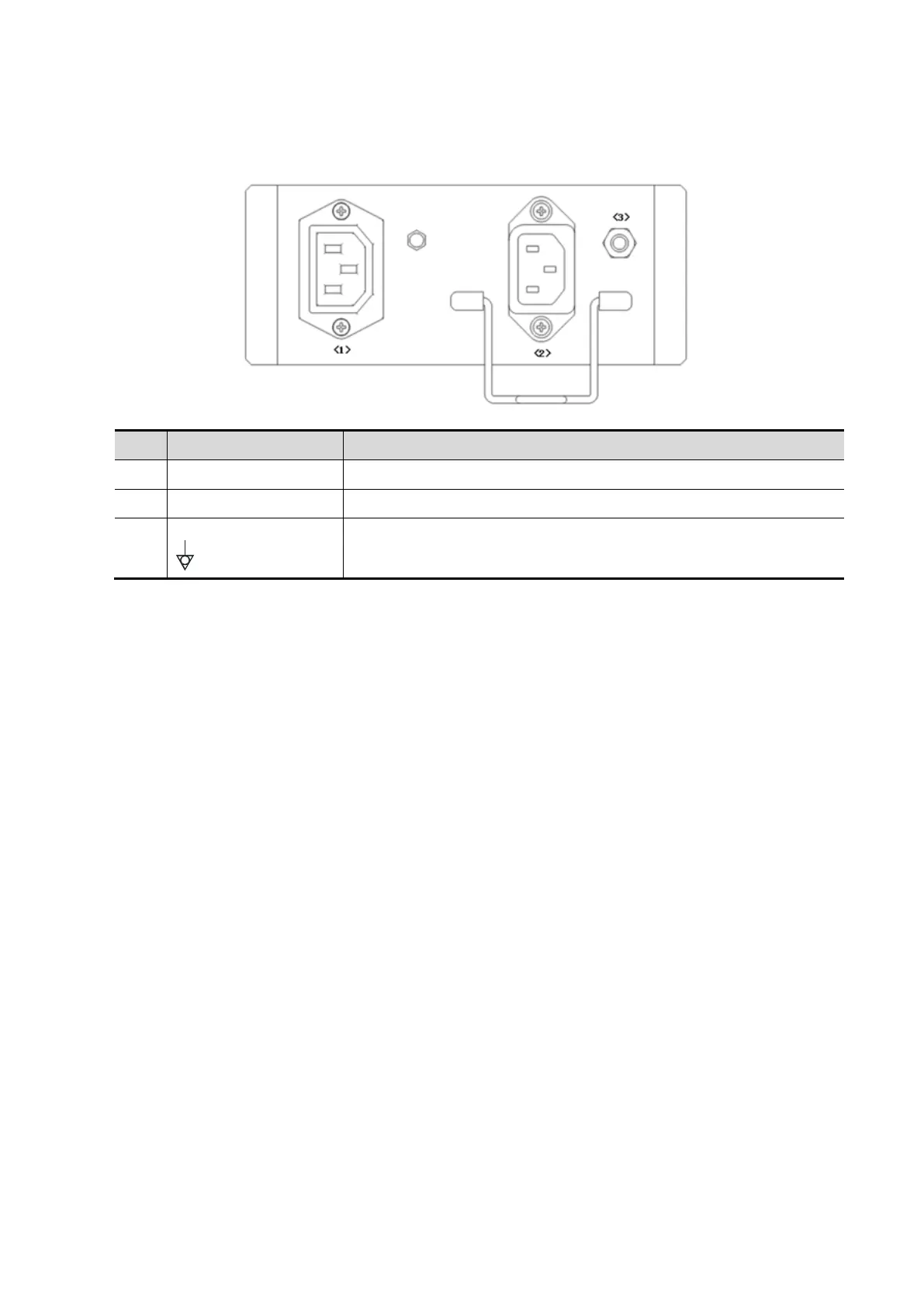

2.1.2.2 Power Supply Panel

No.

Name

Function

<1>

Power outlet

Supplies power to optional peripheral devices.

<2>

Power inlet

AC power inlet.

<3>

Equipotential terminal

Used for equipotential bonding which balances the protective earth

potentials between the system and other electrical equipment.

Table of Contents3
