Mindray M9 User Manual

Field Replaceable Unit 7-3

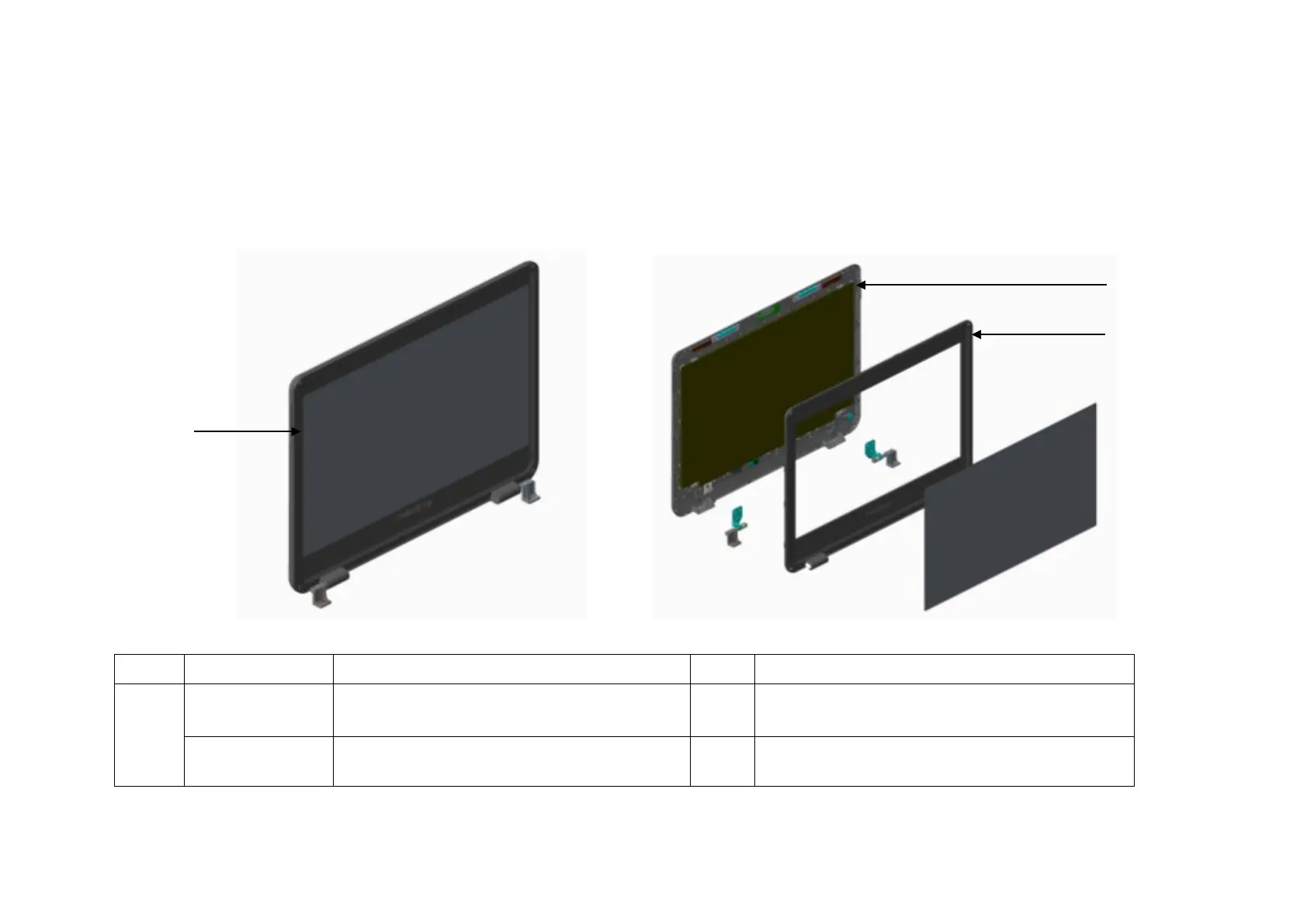

7.2 Assembly Explosive View
7.2.1 Monitor Assembly (A0)
No. Order Number Part Name Qty. Remark
A1
115-048328-00
Monitor Assembly (eDP screen/FRU) 1
eDP signal, for repairing new M9(SN starts with
CC1,CC2,CC3, CC4,CC5) only
115-048329-00
Monitor Assembly (LVDS2eDP/FRU) 1
LVDS to eDP signal, for repairing old M9 (SN
starts with 7B, 7C,7D,8K,CAW) only
A1-1
A1
A1-2
