Structure and Assembly/Disassembly 8-3
8.2 Main Unit Assembly/Disassembly
This section describes the disassembling and assembling of the main parts and hardware boards.
The assembling is the inverse process of disassembling if not mentioned in particular.

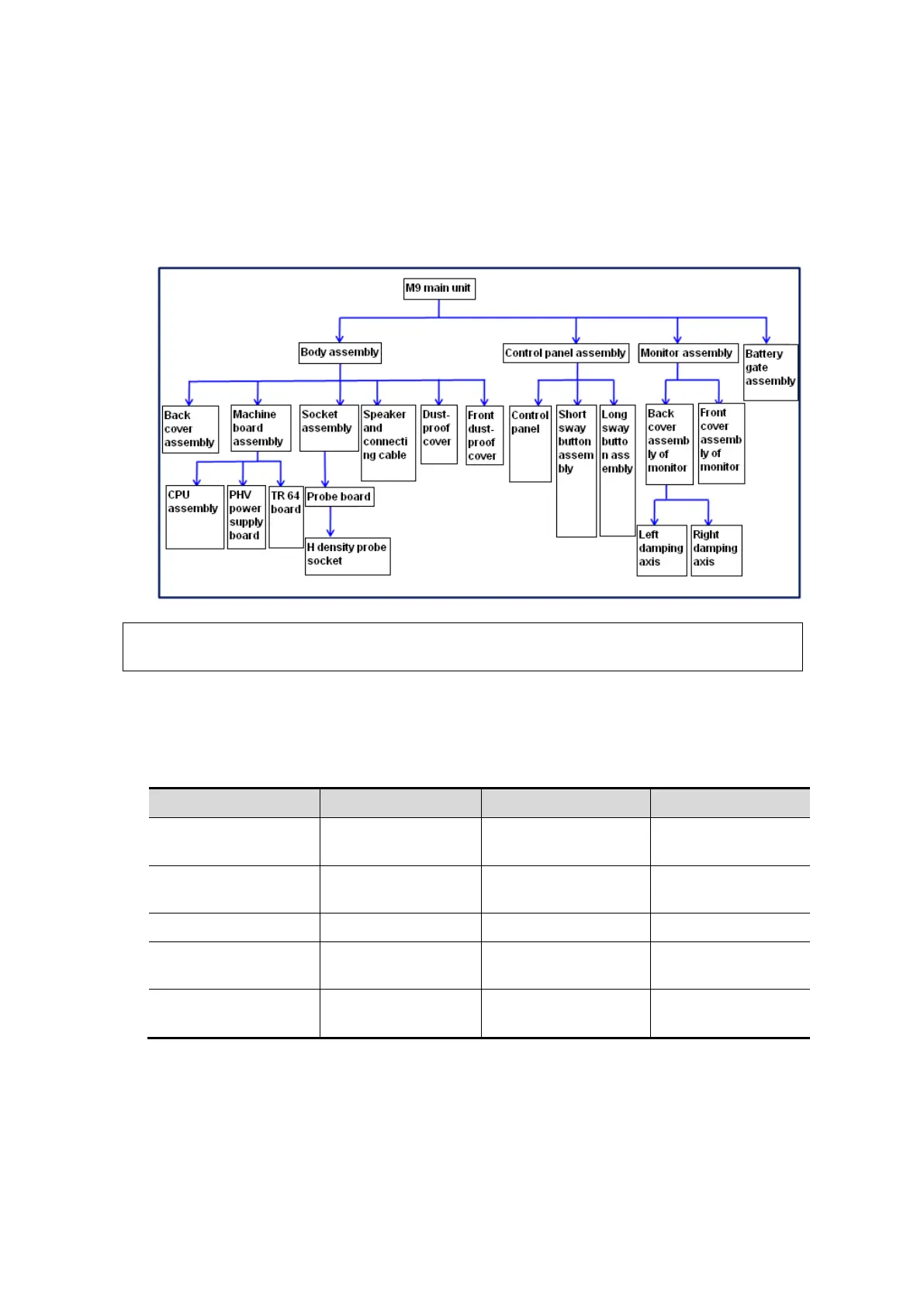

 Sketch
8.2.1 Preparation
8.2.1.1 Disassembly Tools Required
Name Type Material No. Remarks
Cross-headed
screwdriver 107*75 / M2
Cross-headed
screwdriver 102*100 0000-10-10884
M3、M4
Spanner 1PK-H024 095-000063-00 4″
Diagonal cutting
pliers
N-206S 095-000077-00 /
Anti-electrostatic
glove: 1 pair.
/ / /
8.2.1.2 Engineers Required
The disassembly should be performed by professionals from Mindray or the staff who are qualified
for the maintenance after the training.
Note: The illustration of disassembly is for reference only; please relies on the actual
model.

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
