Mindray M9 User Manual

Installation of Option Modules 9-5
Figure
9-2

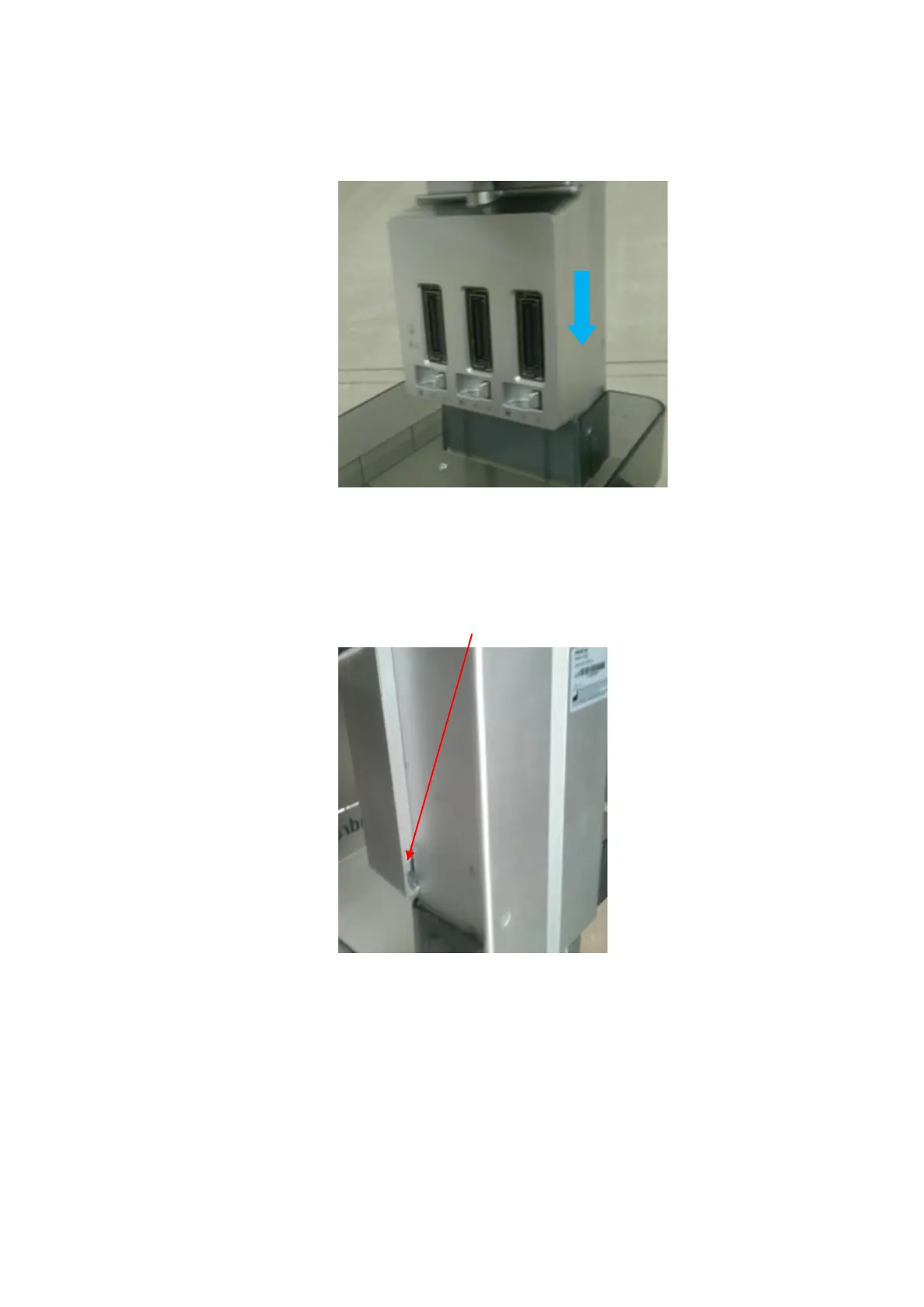

3. Screw 2 screws (M4 X 12 cross panhead screw) on the back of probe extender assembly.
Figure
9-3
9.2.3 Audio/Video Extender Assembly
Push the metal clip on the left side to the bottom. Take put the audio/video extender assembly
rightwards.
Install the assembly towards arrow’s direction
M4 X 12 cross panhead screw (2
screws; one screw for each left and
right side)

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
