Mindray M9 User Manual

9-4 Installation of Option Modules
9.2.1 Storage Tray

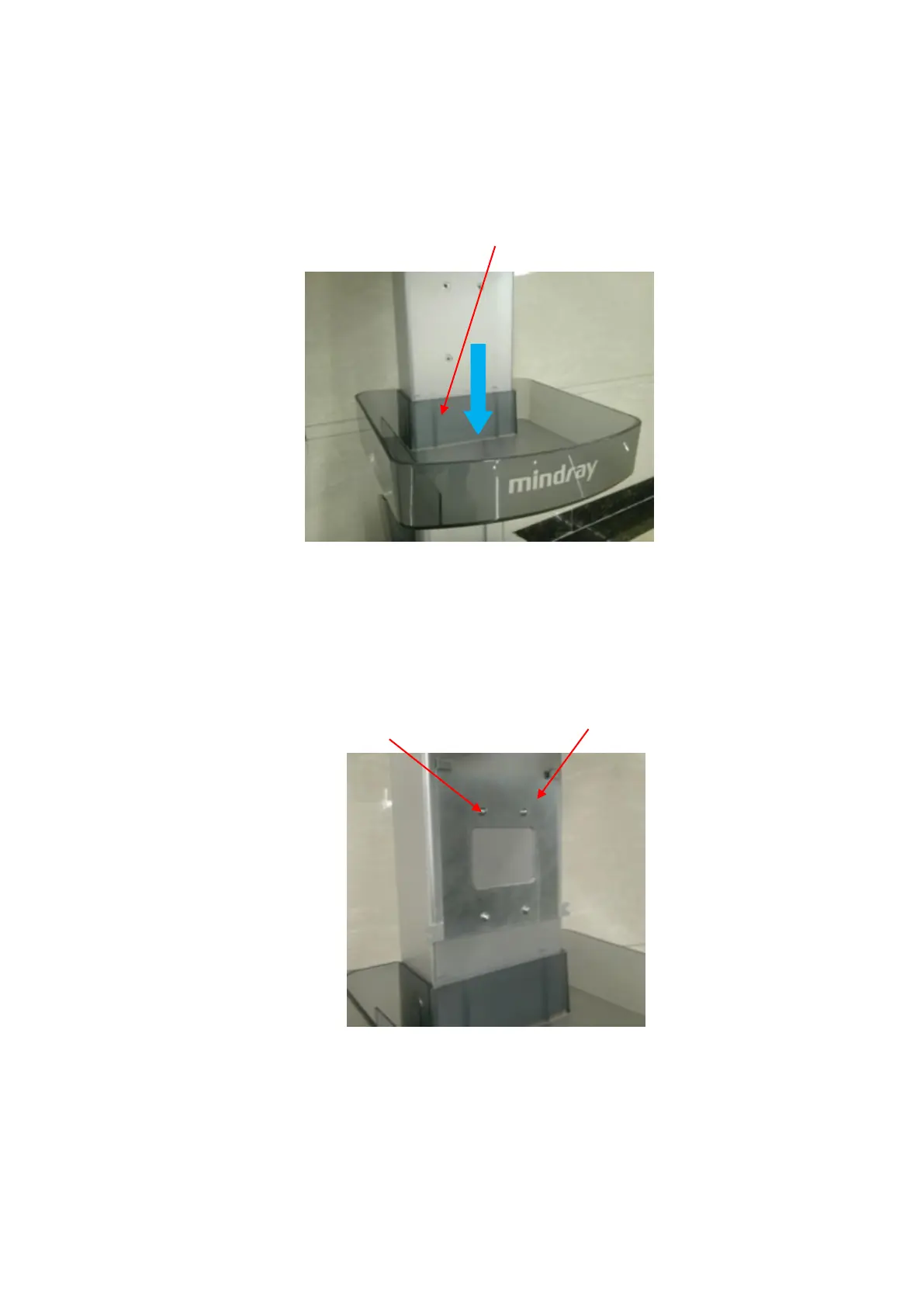

Remove the storage tray downwards. Take out the tray.
9.2.2 Probe Extender Assembly
1. Unscrew 4 screws (M4 X 12 cross panhead screw) on the pegboard of probe extender
assembly.
Figure
9-1
2. Install the probe extender assembly towards arrow’s direction.
M4X12 cross panhead screw
(4 screws)
Pegboard
Remove the storage tray downwards. Take out the tray
