Mindray M9 User Manual

Structure and Assembly/Disassembly 8-1
8 Structure and
Assembly/Disassembly
8.1 Structure of the Complete System
8.1.1 Main Unit

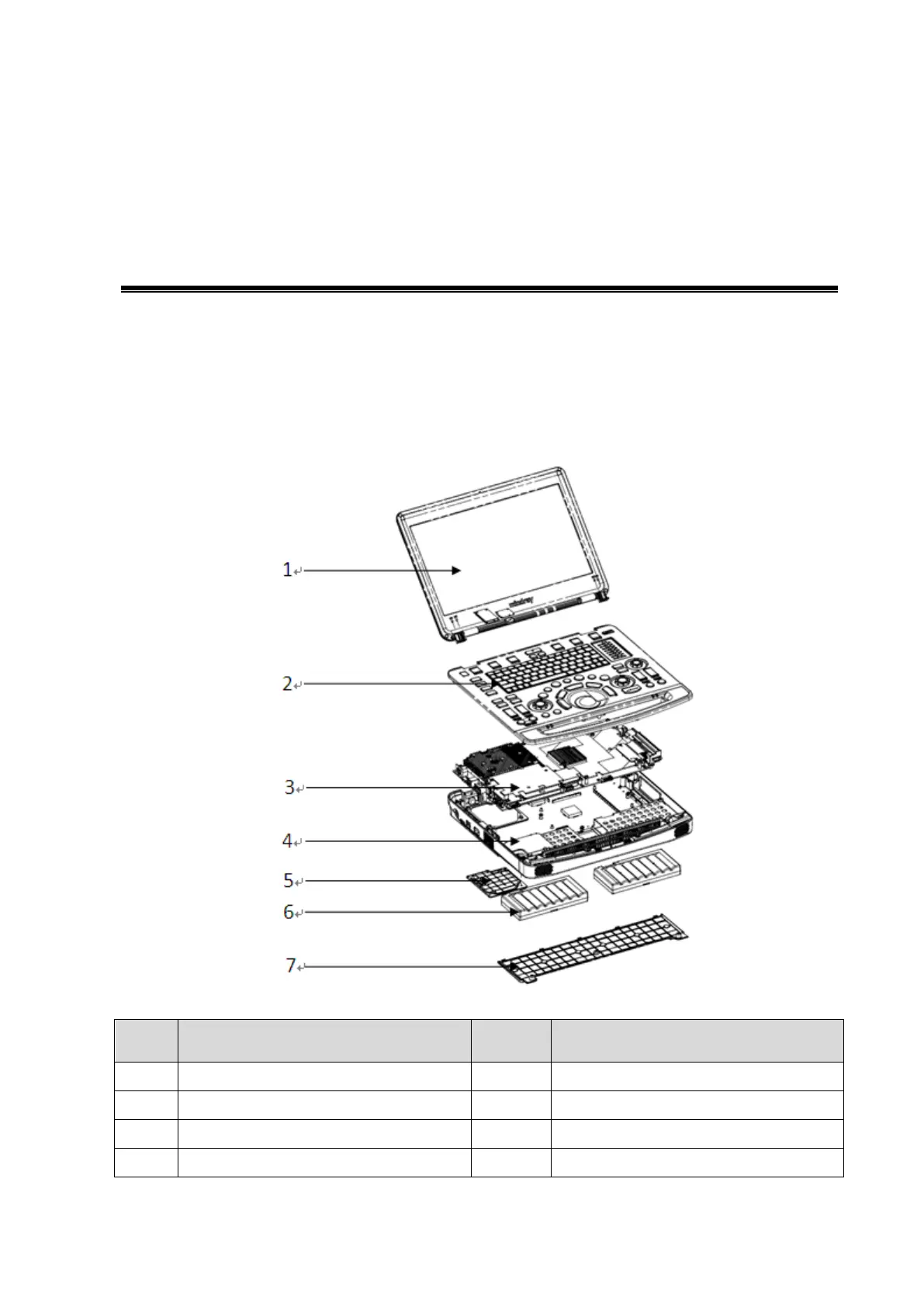

Fig Overall Exploded View
No. Name No. Name
1 Display (monitor) assembly 5 Hardware cover
2
Control panel assembly
6
Battery
3 Machine board assembly 7 Battery cover assembly
4 Back cover assembly of main unit

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
