Mindray M9 User Manual

8-40 Structure and Assembly/Disassembly
8.3.6 Cast-aluminum Base of Trolley Panel

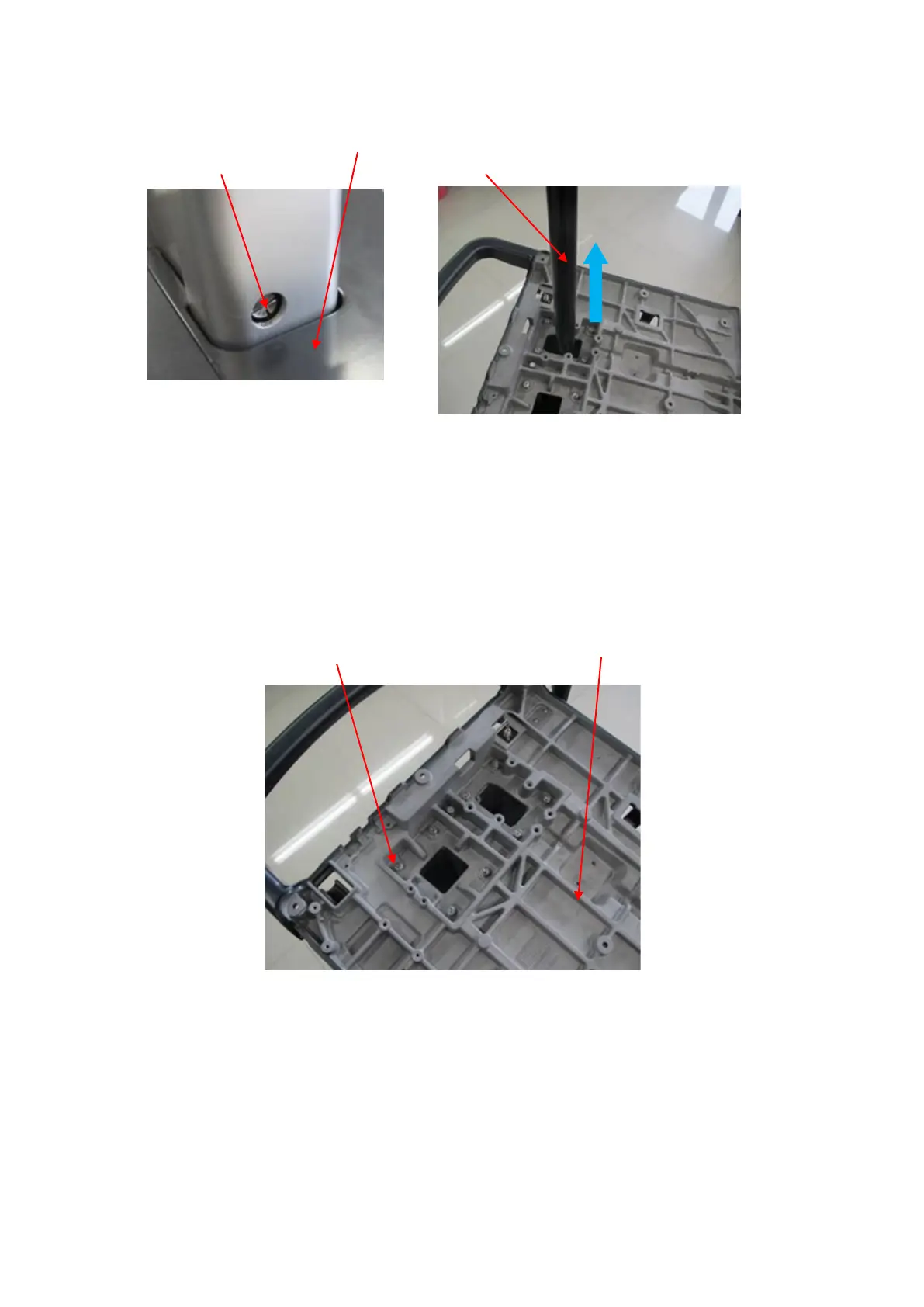

1. Remove the assembly of trolley panel cover and spring assembly. See Chapter 9.3.2.3 and
Chapter 9.3.2.4 for details.
2. Unscrew 8 screws (M5 X 25 Allen screw with the pad and the clip) on the cast-aluminum base,
and remove the panel’ base upwards.
3. Remove the printer tray
Unscrew 4 screws (M4 X 12 cross panhead screw) on the printer tray, and take out the printer
tray.
Cast-aluminum base of
trolley panel
M5X25 inner head screw
with the pad and the clip (8
screws)
Latch of
gas spring
Trolley base
Gas spring

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
