Structure and Assembly/Disassembly 8-39
6. Remove gas spring

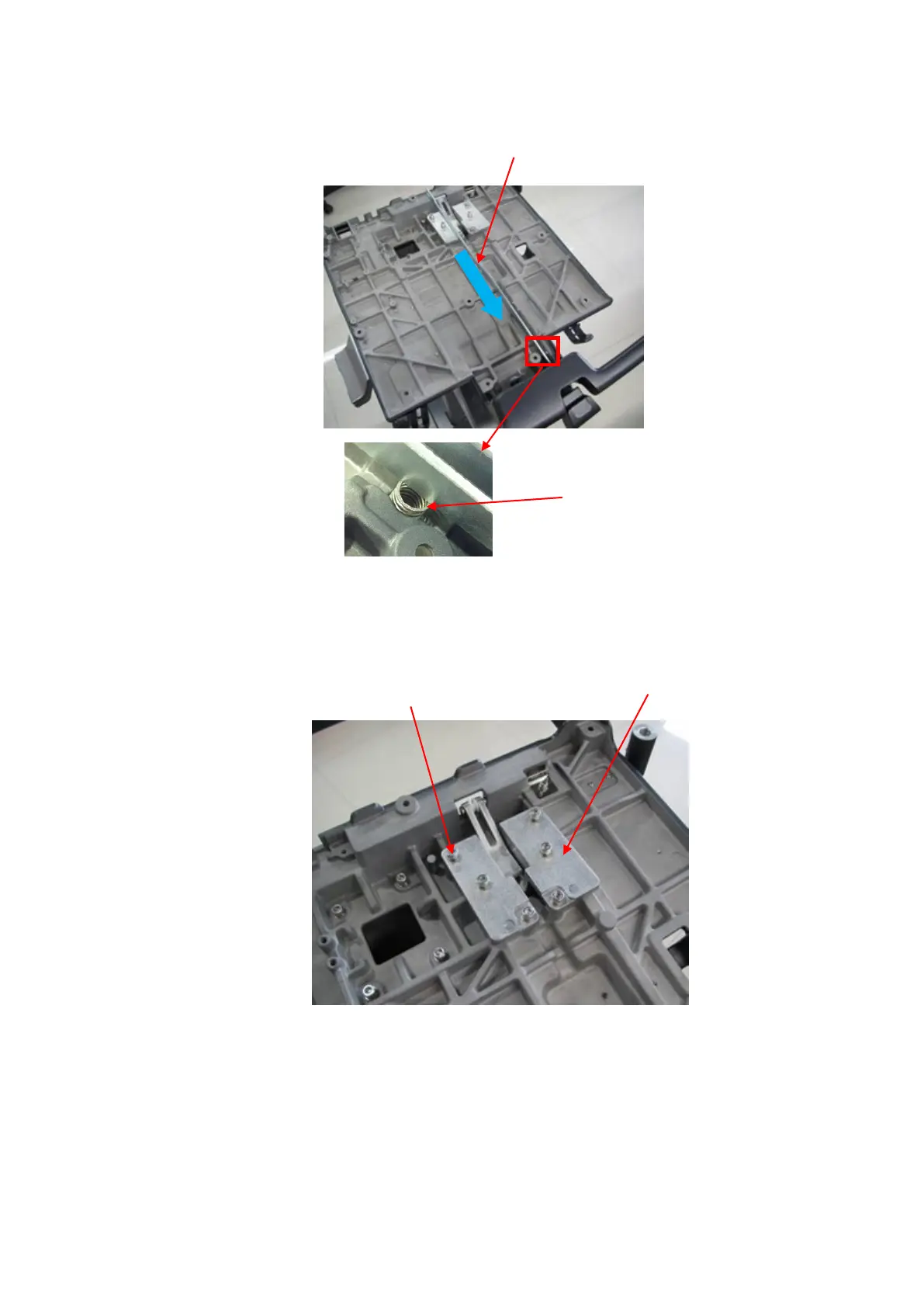

Unscrew 6 screws (M5 X 25 Allen screw with the pad and the clip) on the connecting base of
the gas spring.
Remove the latch of the gas spring at the bottom of the lifting column. Take out the gas spring
upwards.
M5X25 Allen screw with the
pad or the clip (6 screws)
Connecting base
Remove the connecting rod towards arrow’s direction
Spring of the connecting rod
