8-38 Structure and Assembly/Disassembly

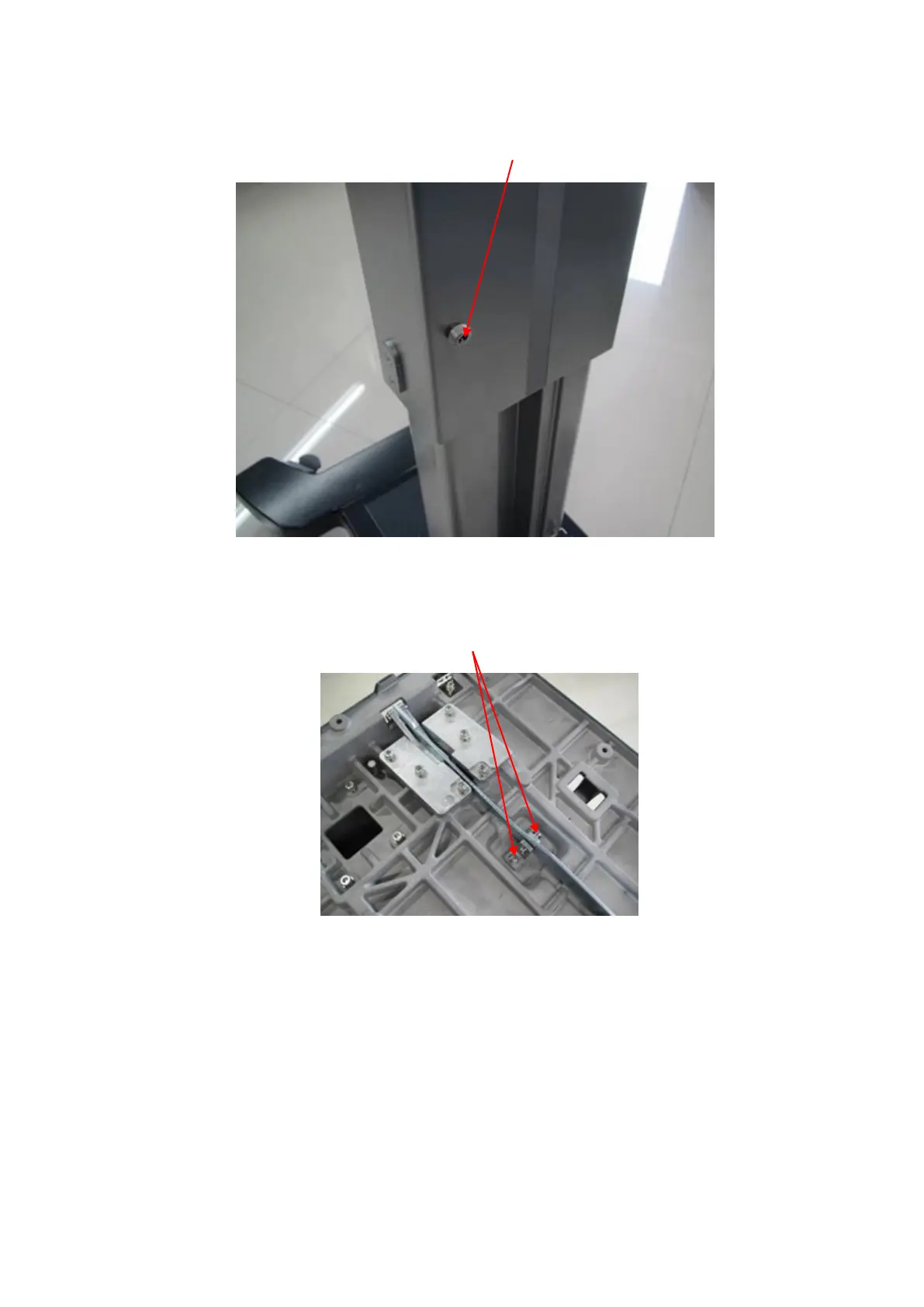

Unscrew 2 screws (M4 X 12 cross panhead screw) on the connecting rod of gas spring.
Lift up the connecting rod of gas spring, and take out the spring of the connecting rod, then
remove the connecting rod towards arrow’s direction.
M4X12 cross panhead screw (2
screws)
Put auxiliary tool (M5 screws or screw driver) into spacing hole
