Mindray M9 User Manual

Installation of Option Modules
9-1
9 Installation of Option
Modules
9.1 Installation of Optional Devices to Software
 Install
1. Copy optional key file to USB flash disk and plug USB flash disk to the port.

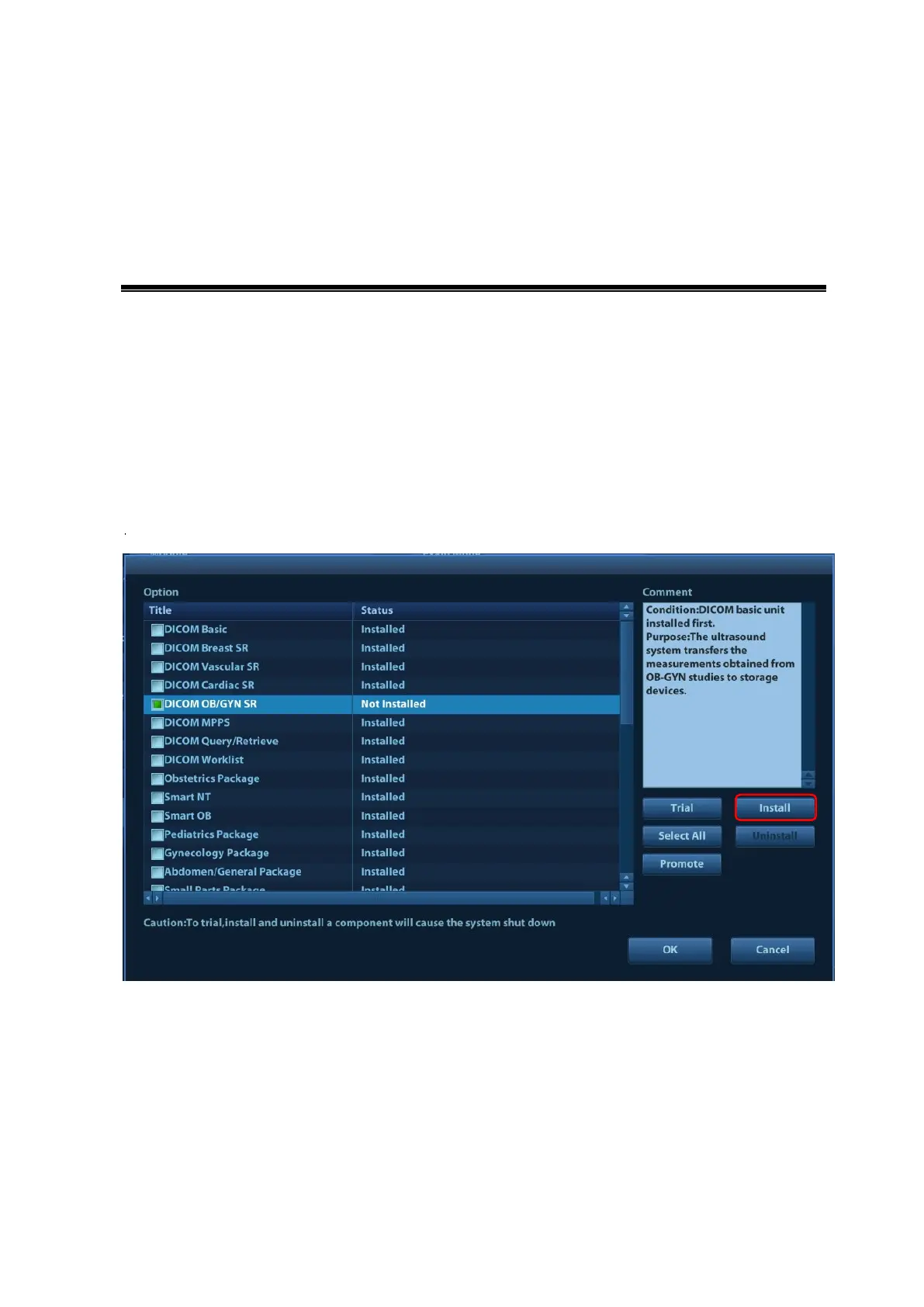

2. Open [Setup] menu. Click [Maintenance]-[Option]. Select the software package to be
installed from the list.
3. Click [Install]. Select key file from the dialog box, and then click [OK].
4. The optional assembly becomes “Installed” after the key file is installed. The corresponding
function is activated after return from preset.
5. Option trial: select the corresponding software package, and then lick [Trial].
Note: for each component, you can activate trial version only once. The trial lasts 180 days for
each key.

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
