Mindray M9 User Manual

Structure and Assembly/Disassembly 8-23
11. TGC dust-proof cover
TGC dust-proof cover is installed on TGC board via interference fit of silicon bearings. Remove
TGC dust-proof from TGC board.
8.2.12 Display (monitor) Assembly
1. Remove the monitor assembly. See Chapter 9.2.4 for details.
2. Disassemble front cover of the monitor.
Take out 4 screw caps from 4 corners of the monitor. Unscrew four screws inside.
Note: keep screw caps properly.

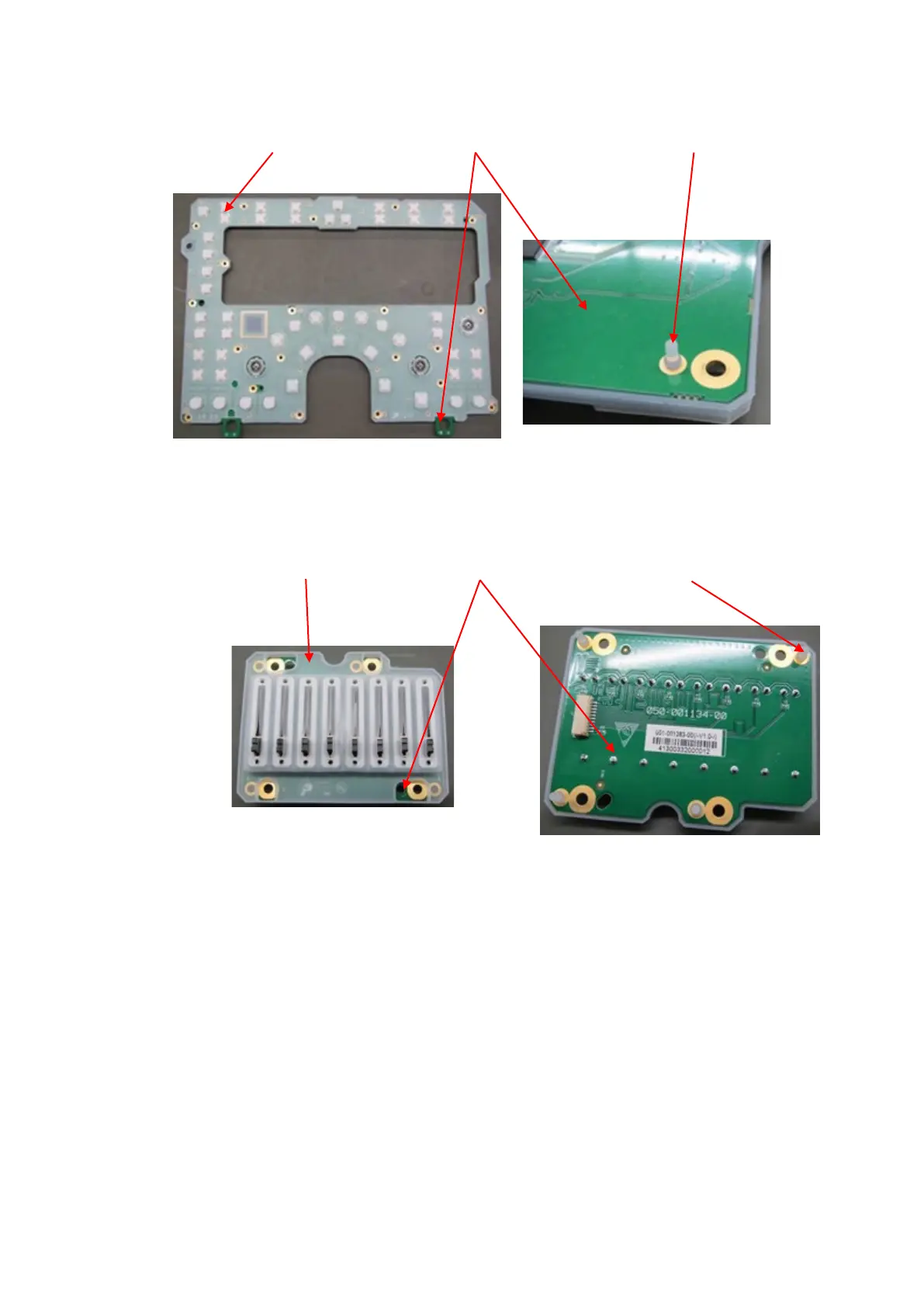

TGC dust-proof cover
TGC board
Silicon bearing (4 bearings)
Silicon keyboard
Control panel PCBA
Silicon bearing (24 bearings)

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
