Mindray M9 User Manual

Structure and Assembly/Disassembly 8-33
8.3.4 Trolley Panel Board Assembly

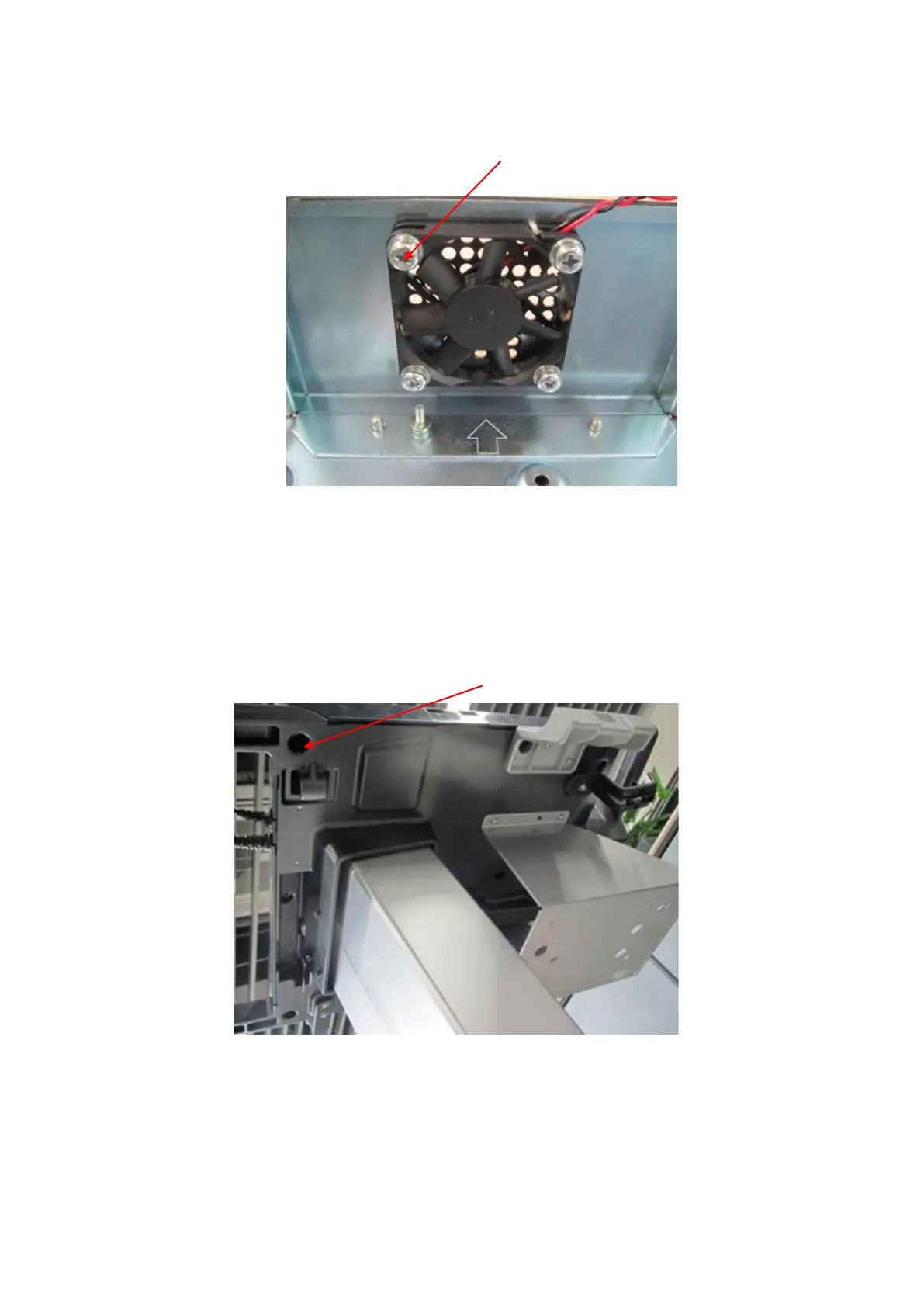

1. Unscrew 10 screws (M4 X 12 cross panhead screw) on the back of trolley panel’s base, and
take out the panel cover.
2. Remove the rotatable clasp
Unscrew 2 screws on the fixing bracket for the spring (M4 X 12 cross panhead screws), and
take out the fixing bracket and the spring.
M4X16 cross panhead with the pad and the clip (4 screws)
M4X12 cross panhead screw
(10 screws)

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
