Mindray M9 User Manual

8-10 Structure and Assembly/Disassembly
8.2.7 ECG Assembly

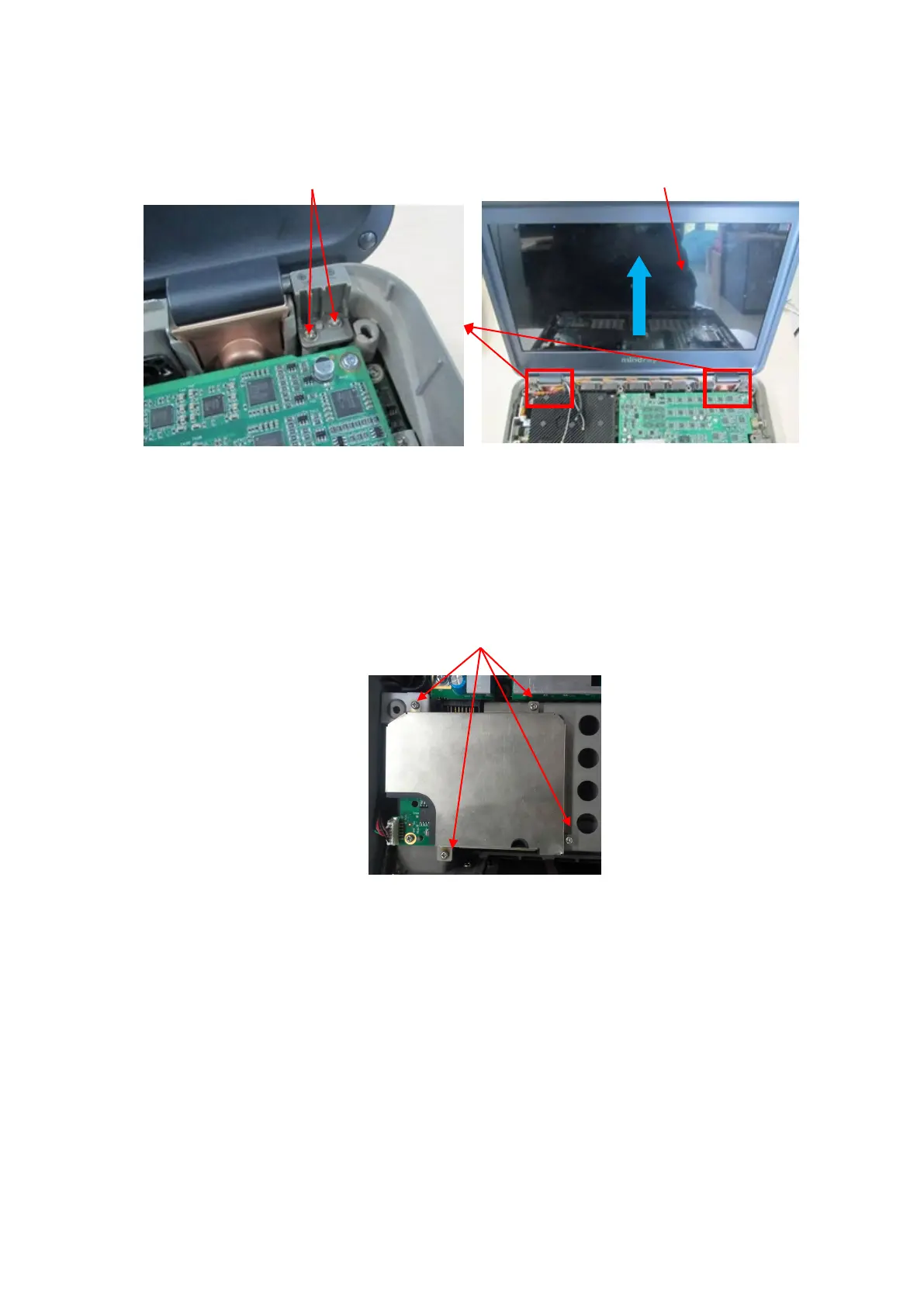

1. Remove control panel and monitor assembly. See Chapter 9.2.4 for details.
2. Unscrew 4 screws on CG shield cover (M2 X 4 stainless steel cross head screws). Remove the
shield cover.
3. Remove the ECG cable pressure plate, and remove 4 screws on ECG board ((M2 X 4 stainless
steel cross head screws). Remove ECG board. Extract ECG signal cables.
M2 X 4 stainless steel cross head screw (4 screws)
M3X8 Nylok screw
(2 screws for each left and right side)
Remove the monitor assembly
upwards

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
