Mindray M9 User Manual

Structure and Assembly/Disassembly 8-11

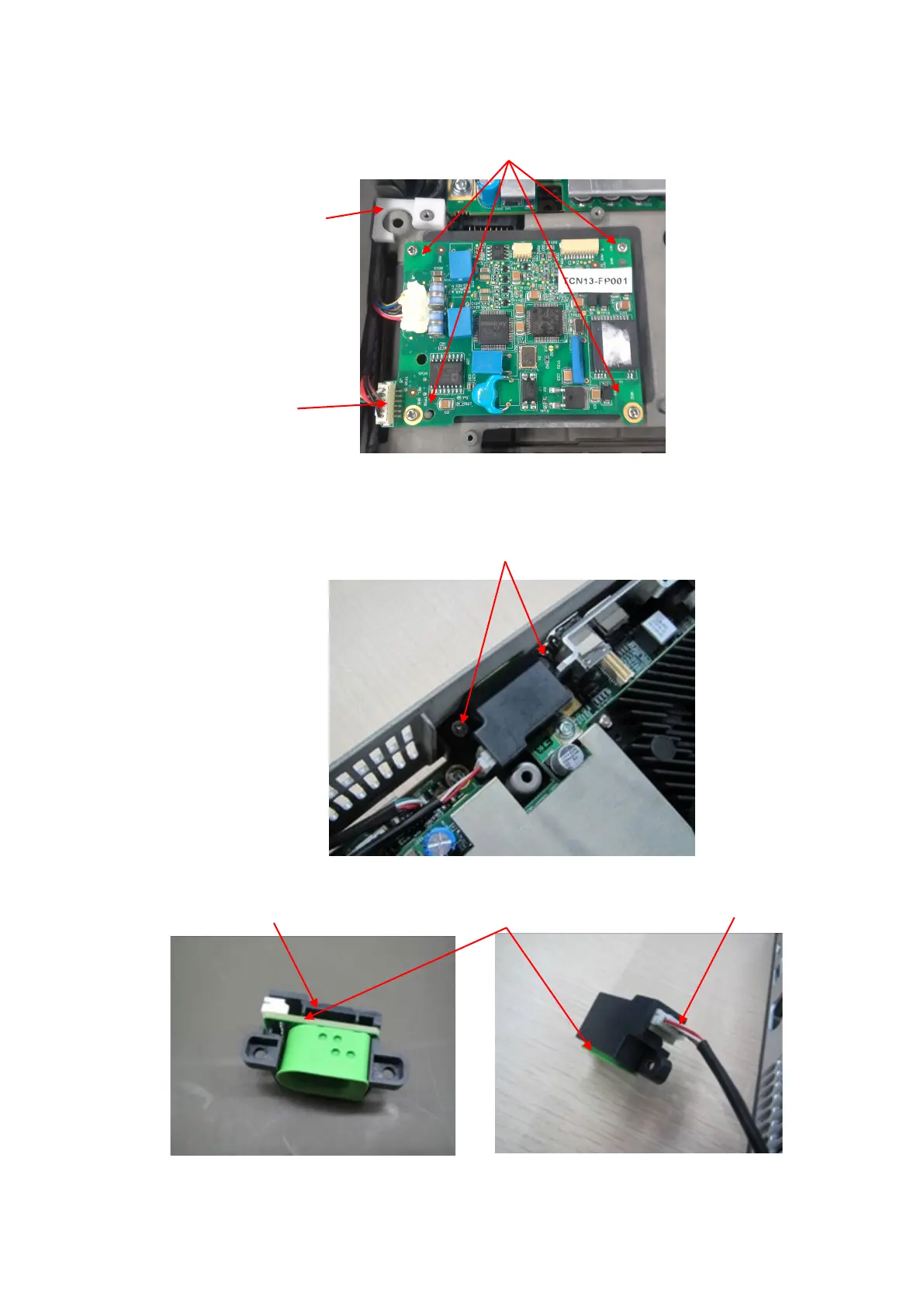

4. Unscrew 2 screws on ECG fixing bracket (M3 X 8 Nylok screw).Remove ECG's fixing bracket
and extract ECG connecting cables.
5. Remove the speaker assembly. Unplug the socket on the main board.
M3 X 8 Nylok screw (2 screws)
ECG fixing bracket
ECG connecting board
Connecting cables to
ECG socket
Pressure plate
M2 X 4 stainless steel cross head screw (4 screws)
ECG signal
cables

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
