Mindray M9 User Manual

8-28 Structure and Assembly/Disassembly
8.3.1.3 Disassembly Requirements
Be prepared before disassembling ultrasound device.
1. Stop scanning the patient and capturing images. Shut down the device and cut off AC power
supply. Unplug AC power supply cable.
2. Lock the casters to prevent the device from moving in the disassembly.
3. Get the disassembly tools prepared.
8.3.2 Storage Box
1. Remove the storage box upwards.
2. Unscrew 2 screws on bracket of storage box (M4 X 12 cross panhead screw), and remove the
bracket of the storage box.

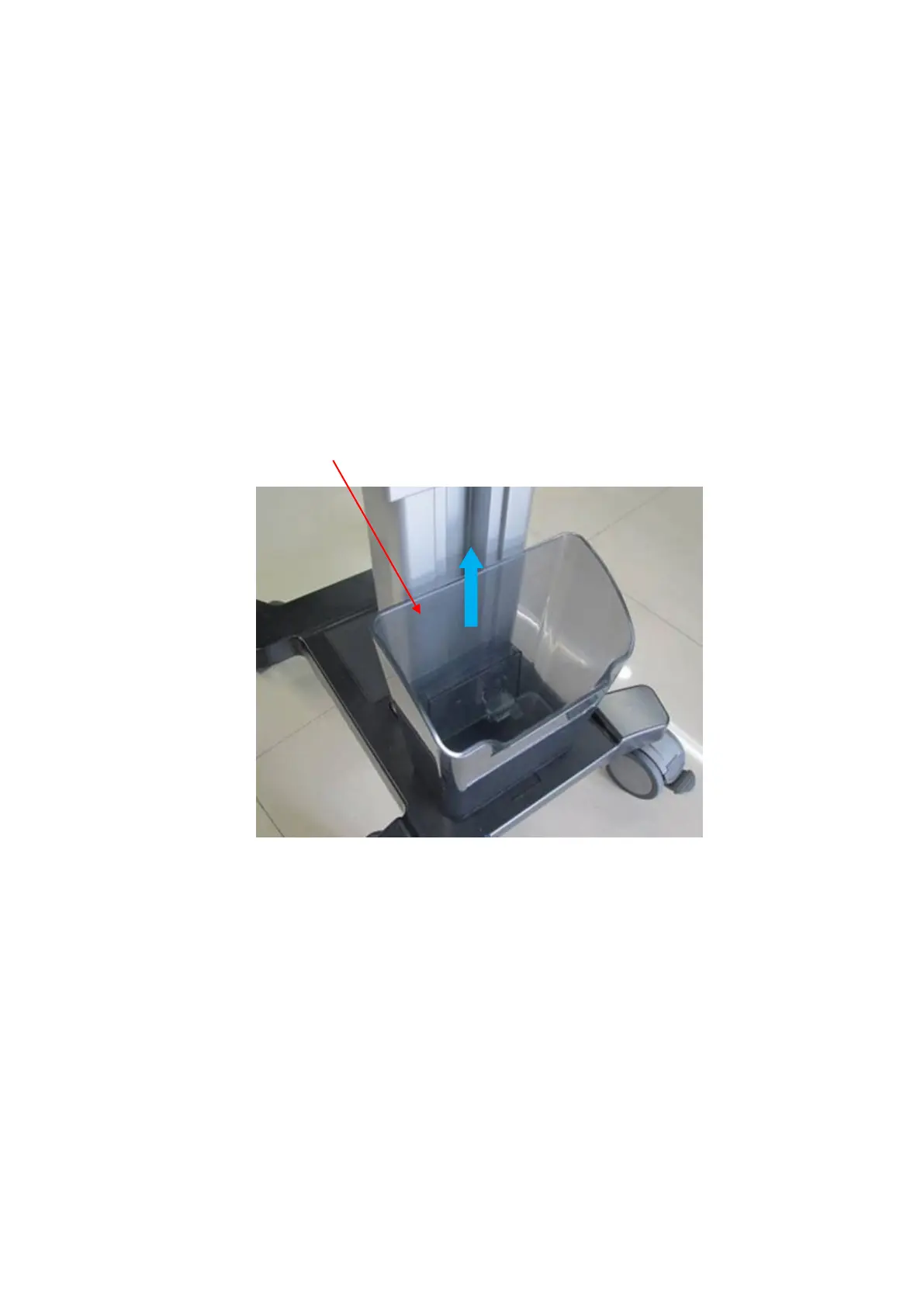

Storage box
