Structure and Assembly/Disassembly 8-17

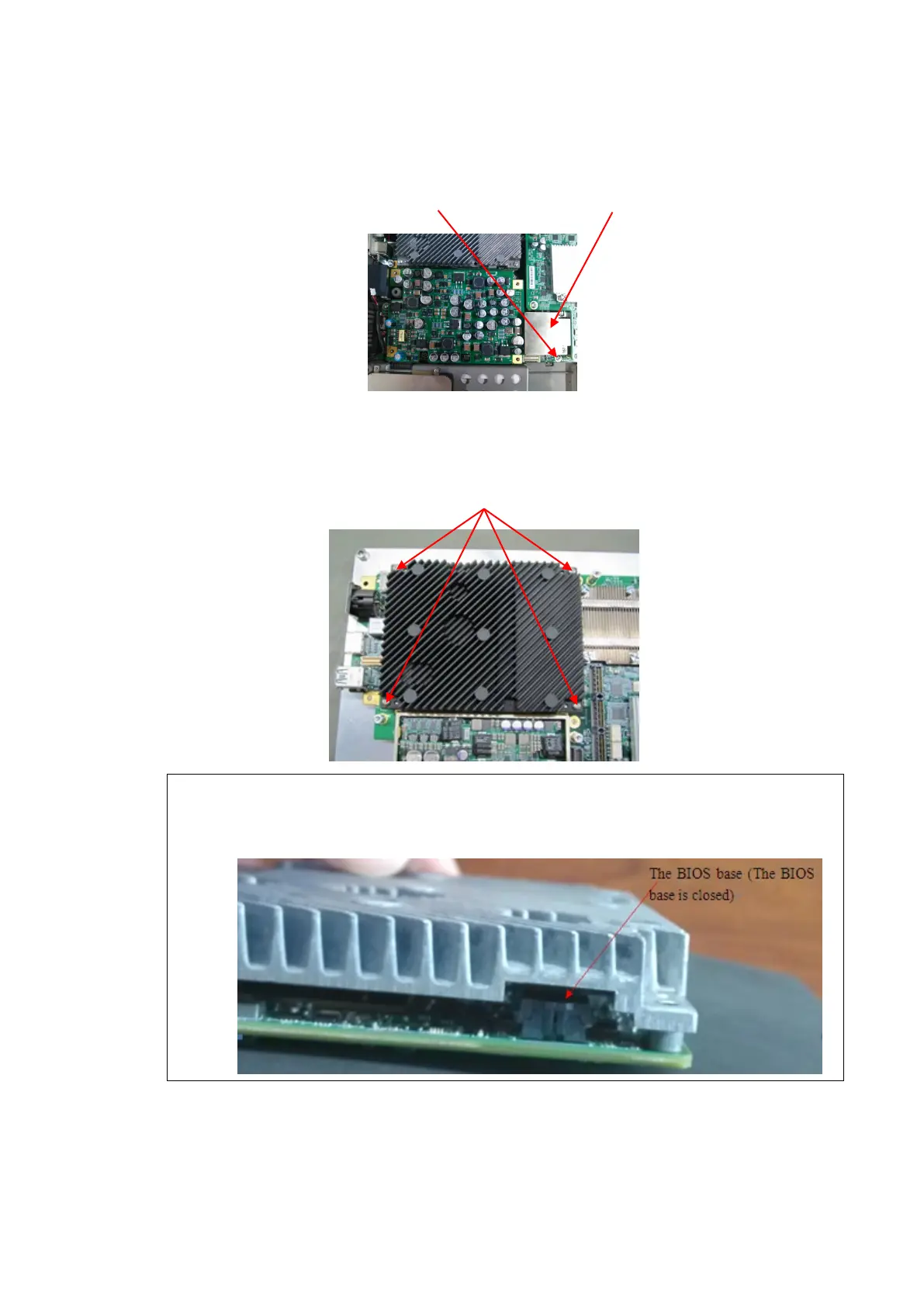

5. Disassemble CPU assembly.
Unscrew four screws (M2.5 X 12 cross slot bolt) on CPU assembly, and then remove the CPU
assembly.
NOTE Do not open the BIOS base shown in the following figure when disassembling the
CPU board assembly. Ensure the BIOS base is closed before re-assembling the
CPU board assembly. Press it until closed if it is opened. Otherwise, it fails to boot
the device up.
M3 X 6 cross
panhead screw
(1 screws)
Smaller shield
cover of PHV
board
M2.5X12 cross slot bolt (4 screws)

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
