Mindray M9 User Manual

8-30 Structure and Assembly/Disassembly
3. Remove the battery

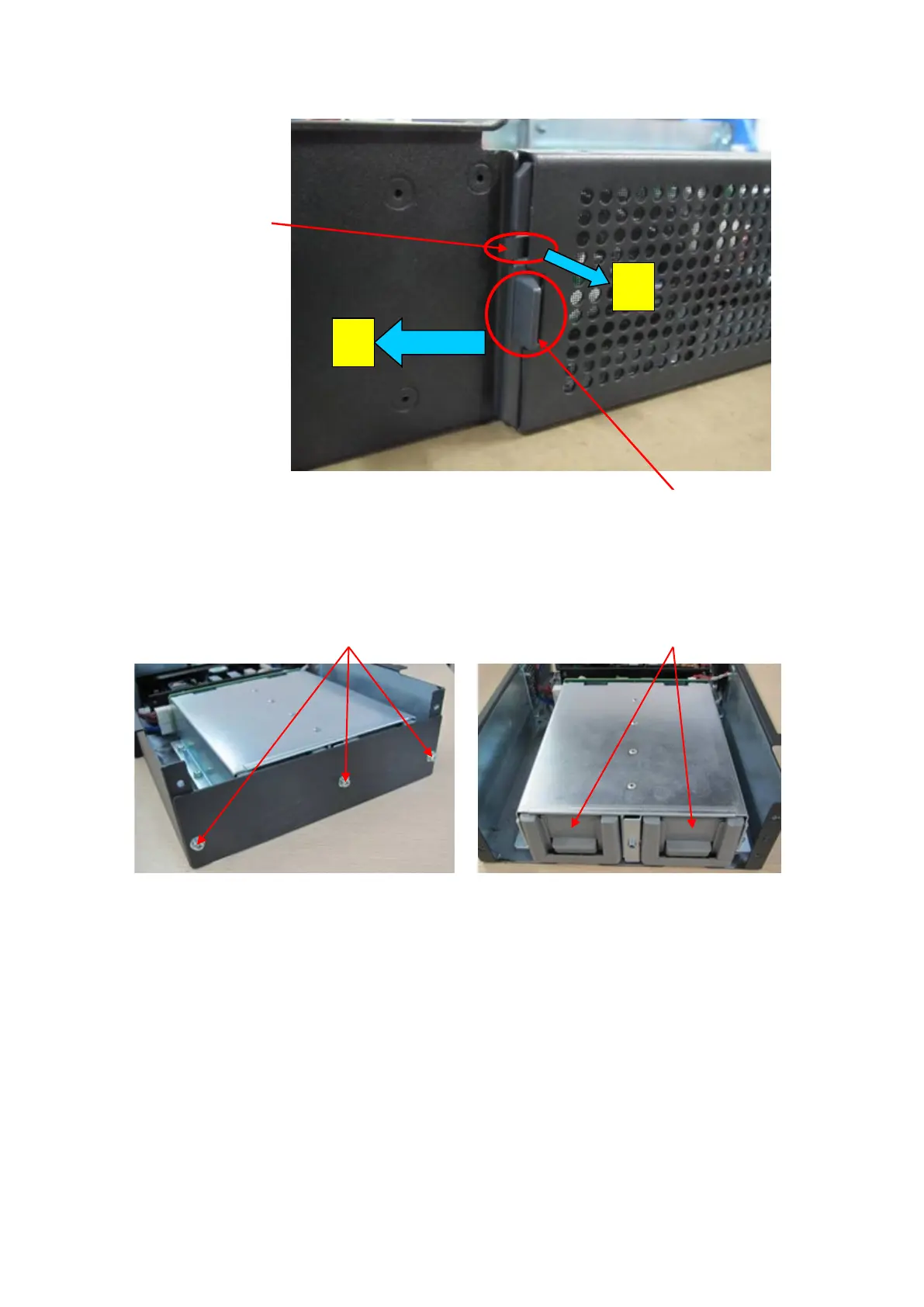

Unscrew 3 screws (M4 X 12 cross panhead screw) on the battery baffle board. Remove the
battery baffle battery, and then take out the battery.
4. Remove the battery compartment and battery management board
Unscrew 6 screws (M4 X 12 cross panhead screw, 3 screws for each left and right side) on the
battery compartment, and then take out the battery compartment.
1
2
The plastic clasp
Clip
M4X12corss panhead screw (3 screws)
Battery
