8-48 Structure and Assembly/Disassembly

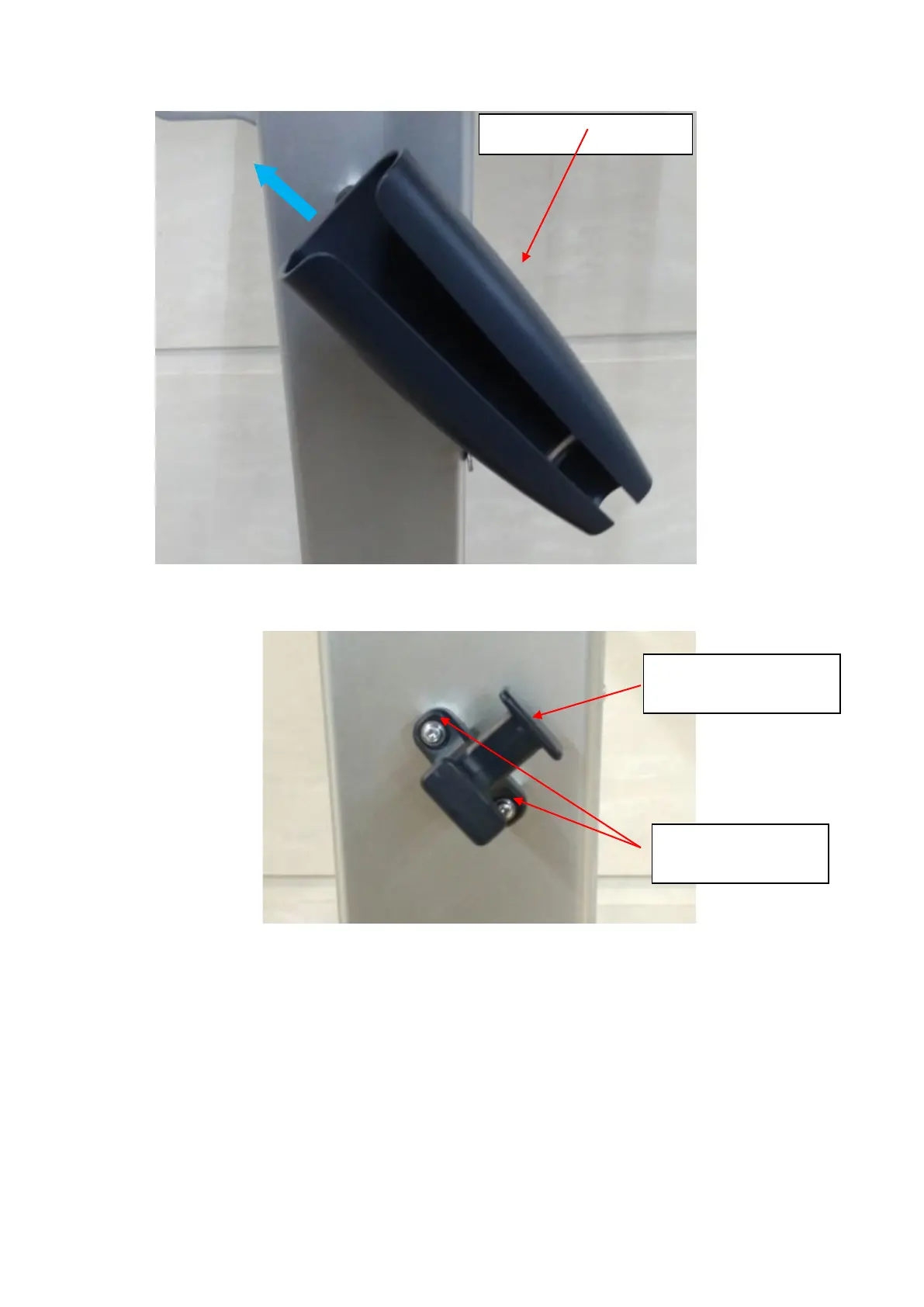

2. Disassemble intracavity probe holder bracket
Unscrew two screws (cross panhead screw M3X12)
3. Disassemble padding block
Unscrew two screws (cross panhead screw M3X12)
Intracavity probe holder
Intracavity probe holder
bracket
cross panhead screw
M3X12(2pcs)

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
