Mindray M9 User Manual

3-10 System Installation

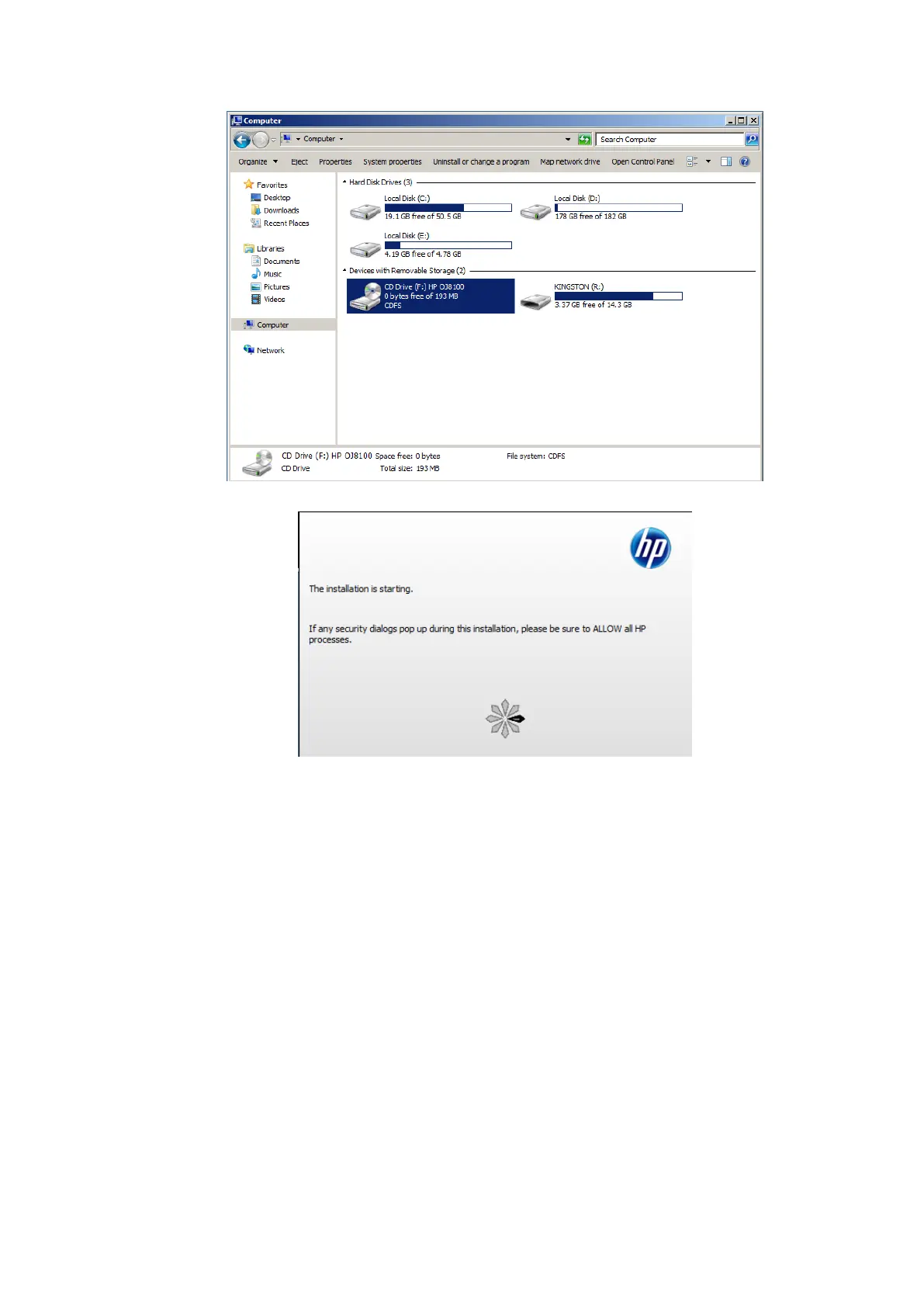

4. Double click the CD driver (HP8100 is given as an example). The installation is starting.
5. Complete the operation according to the prompts on the screen. Click [Finish] to end the
installation.
6. Click [OK] to save the settings.
 Print
Both report and image can be printed on a graph/text printer.
1. To set the default report printer and its attribute:
(1) Enter "[Setup]→[Print Preset]" screen.
(2) Select the "Report Print" column in the Service Type list.
(3) In the “Property” frame, select printer from the driver list next to “Printer” in the lower
screen and set the items as needed.
(4) Click [Save] after you have finished setting.
2. Report print
In Report screen, select [Print] to print the report.
If you want to use a shortcut key for report print, you need to define the user-defined key in
“Key Configuration”. For details, see Operator manual.
Please refer to the accompanying manuals of the printers for more details.

Mindray M9 Specifications

General

Type	Portable Ultrasound System
Battery	Rechargeable lithium-ion battery
Battery Life	Up to 90 minutes
Display	15.6 inch high resolution LED monitor
Imaging Modes	B, M, Color, Power, PW, CW
Transducers	Linear, Convex, Phased Array
Transducer Ports	3
Probe Connectors	3
Connectivity	DICOM, USB, HDMI
Operating System	Windows-based
