Mindray SV300 User Manual

9-10
A. Inspiratory filter B. Humidifier inlet C. Humidifier outlet
D. Inspiratory water trap E. Y piece (connect with the O
2
therapy mask)
F. Support arm hook
1. Mount the filter onto the inspiratory port.
2. Connect the inspiratory filter to the humidifier inlet via the tube.
3. Connect the humidifier outlet to the water trap via the tube. Then connect the water trap
to the Y piece via the tube.
4. The expiratory port is not connected with a tube.
5. Place the tubes onto the support arm hook.
9.13.1.2 Using Nasal Cannula for O
2
Therapy

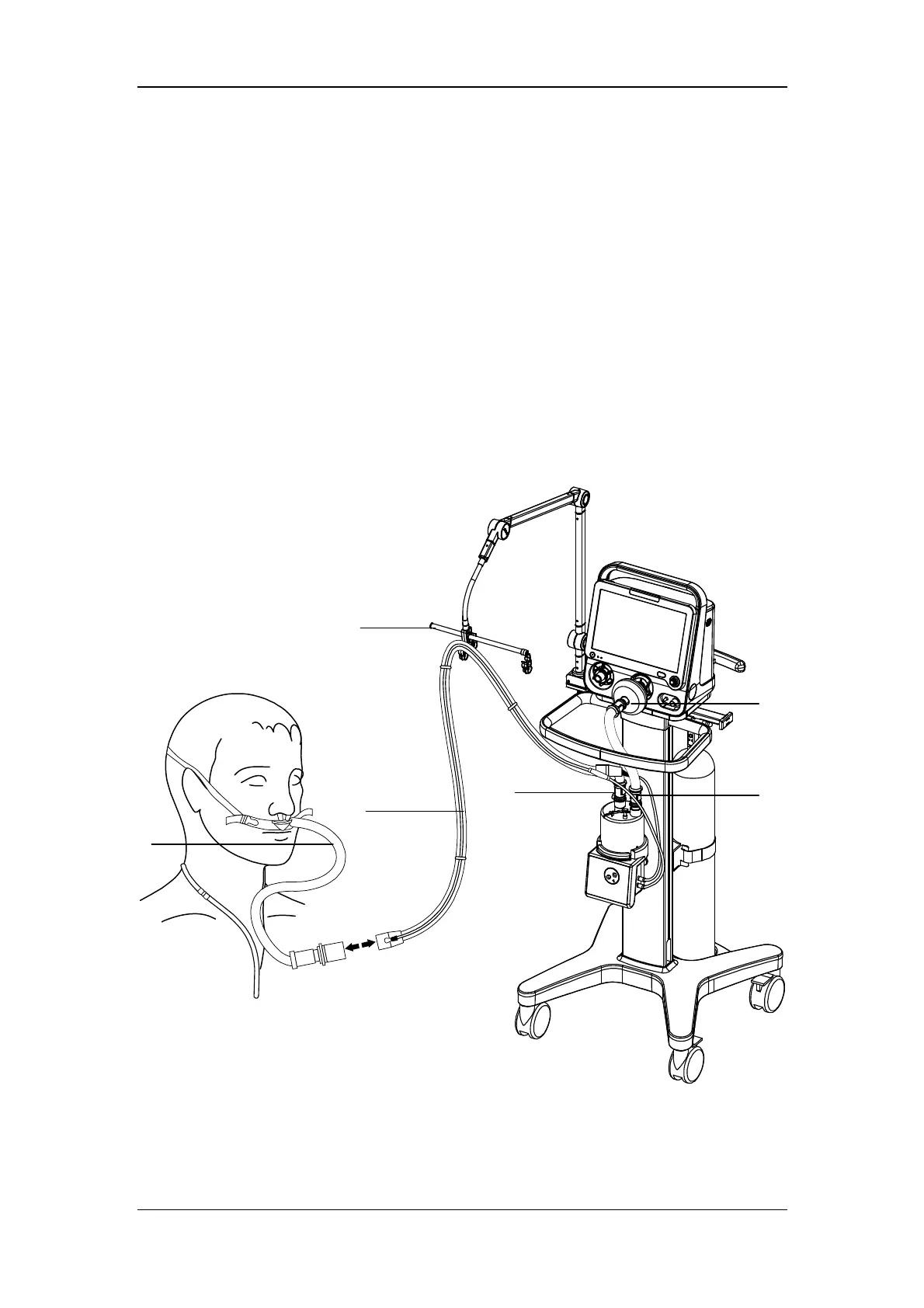

A. Inspiratory filter B. Humidifier inlet C. Humidifier outlet
D. Patient tubing with heating function E. Nasal cannula F. Support arm hook
B
A
C
D
F
E

Mindray SV300 Specifications

General

Waveform Display	Pressure, Flow, Volume
Battery Backup	Up to 2 hours
Ventilation Modes	VCV, PCV, SIMV
Tidal Volume Range	20 to 2000 mL
FiO2	21 to 100%
Inspiratory Time	0.2-5.0 s
Monitoring Parameters	Paw, Ppeak, Pmean, Pplat, PEEP, VTI, VTE, MV, f, FiO2, I:E
Alarms	High/Low Airway Pressure, High/Low Minute Volume, High/Low Tidal Volume, High/Low Respiratory Rate, High/Low FiO2, Apnea, Power Failure
Power Supply	AC 100-240V, 50/60Hz
Peak Flow	180 L/min
Trigger Sensitivity (Flow)	0.5-10 L/min
