Mindray SV300 User Manual

7-3
NOTE
 As required by the relevant rules and regulations, carbon dioxide concentration
should be monitored when the equipment is used on the patient. If your ventilator
is not configured with such monitoring function, use a monitor which complies
with the relevant international rules and regulations for carbon dioxide
concentration monitoring.
 CO
2
cannot be measured in the aerosolized medicament environment. CO
2
module
sampling and monitoring are disabled when the nebulizer is activated.
7.2 Use a Sidestream CO
2
Module
NOTE
 This section is only applicable to the ventilator configured with sidestream CO
2
module.
7.2.1 Prepare to Measure CO
2

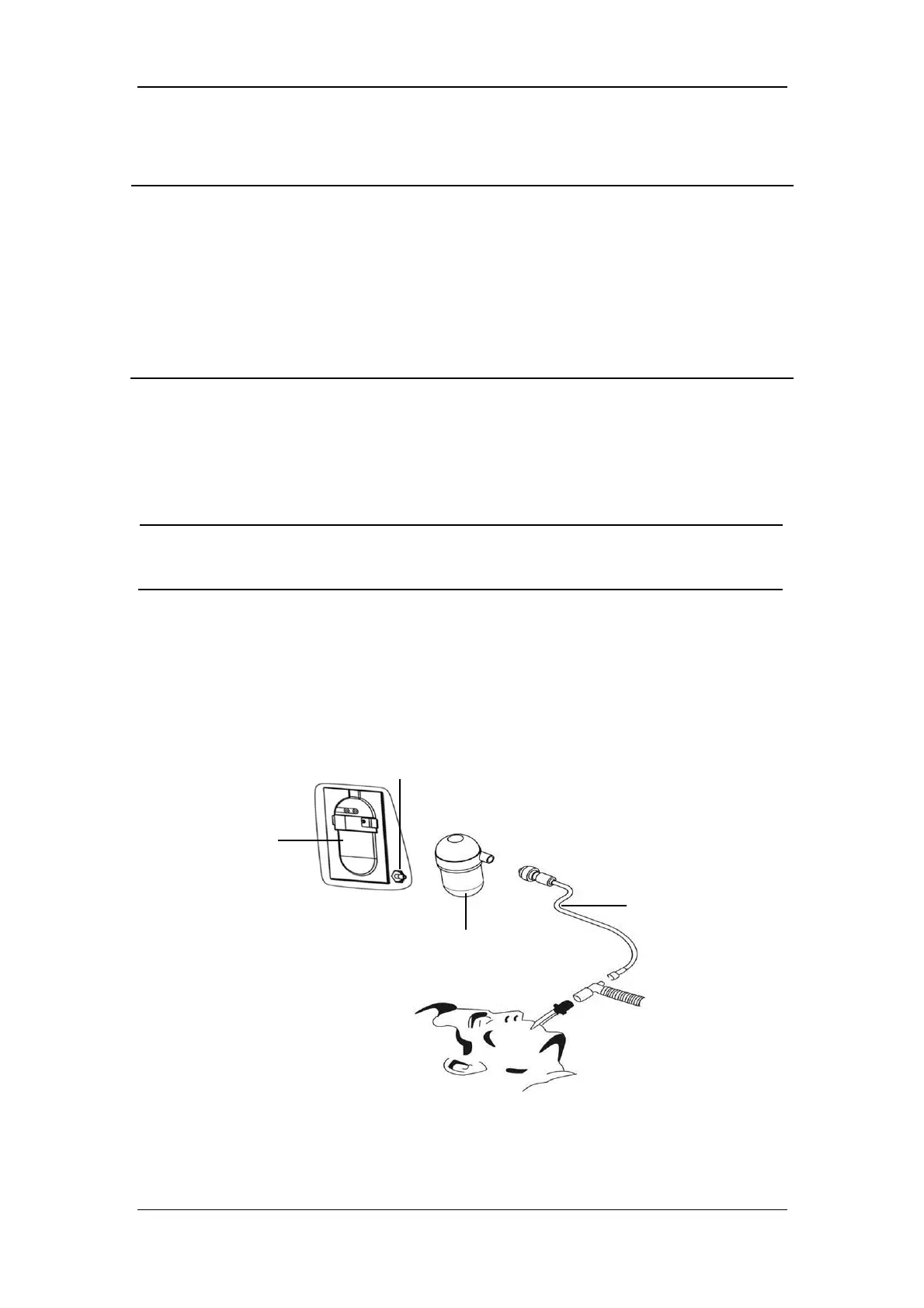

1. Attach the water trap to the water trap fixer and then connect the CO
2
components as
shown below.
2. By default, the CO
2
module is in measure mode. When the CO
2
module is connected
(CO
2
sensor monitoring is set to ON), the [CO
2
Startup] message is displayed on the
screen.
Water trap
Water trap fixer
Sampling line
Exhaust port of sample gas. Sample gas
is released into the room.

Mindray SV300 Specifications

General

Waveform Display	Pressure, Flow, Volume
Battery Backup	Up to 2 hours
Ventilation Modes	VCV, PCV, SIMV
Tidal Volume Range	20 to 2000 mL
FiO2	21 to 100%
Inspiratory Time	0.2-5.0 s
Monitoring Parameters	Paw, Ppeak, Pmean, Pplat, PEEP, VTI, VTE, MV, f, FiO2, I:E
Alarms	High/Low Airway Pressure, High/Low Minute Volume, High/Low Tidal Volume, High/Low Respiratory Rate, High/Low FiO2, Apnea, Power Failure
Power Supply	AC 100-240V, 50/60Hz
Peak Flow	180 L/min
Trigger Sensitivity (Flow)	0.5-10 L/min
